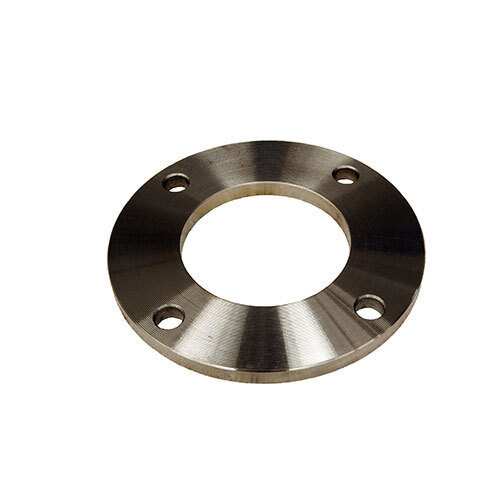

AAP 10" Slip-on Weld Steel Plate Flange AS2129 Table-D SFPDX25

Description

Slip-On Plate Flanges

Specification:

AS2129 - Flanges for Pipes, Valves and Fittings (Australian)
- **AS2129 is a replica of BS10 but is stated in mm rather than inches. In some sizes bolt holes are slightly larger to give better clearance

APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.

MARKING: All Flanges when possible will display a heat number, size, table, grade and dimensional standard

About Plate Steel Flanges:

Plate flanges are mainly used for light-duty, lower pressure or non-critical applications, commonly referring to AS2129, BS10 or AS4087 standards.
The manufacturing method involves cFitting and machining from plate steel

Specifications

AIMS SKU A0078738

Brand AAP

Model Number SFPDX25

Pipe Size (inch) 10"

Approx. Weight kg/pc 8.3

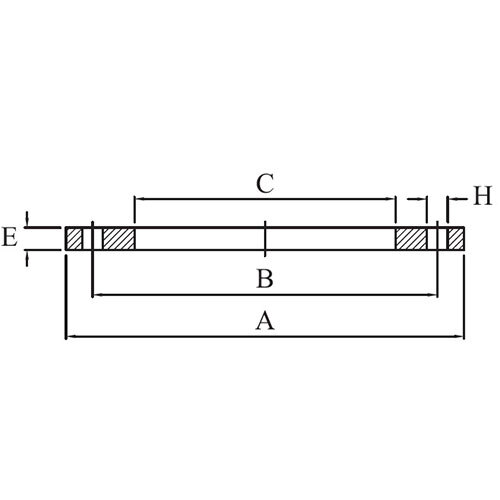

Flange Outside Diameter (A) 406

Flange Thickness (E) 16

Drilling Bolt Circle Diameter (B) 356

Drilling Holes Diameter (H) 22

Drilling No. Of Holes 8

Drilling Bolt Size M20

Bore Slip-on Socket Length (C) 275

Type Slip-on Weld Plate Flange
