Description

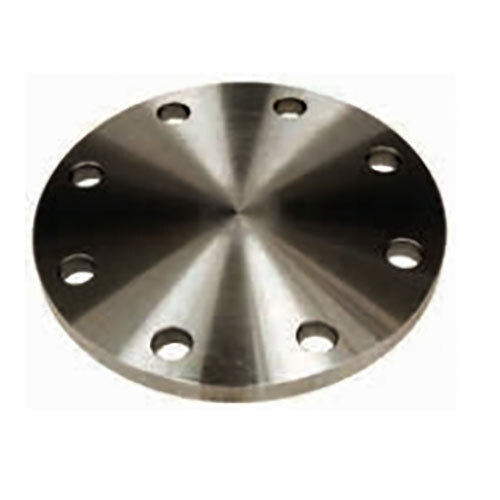

AAP Blind Flat-Faced Flange

  • Standard: AS4087 - Metallic flanges for Waterworks Purposes (Australian).
  • Application: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.
  • Marking: All flanges when possible will display a heat number, size, table, grade, and dimensional standard.

About Plate Steel Flanges:

  • Plate flanges are mainly used for light-duty, flower pressure, or non-critical applications, commonly referring to AS2129, BS10, or AS4087 standards.
  • The manufacturing method involves cutting and machining from plate steel.

Specifications

  • AIMS SKU A0079072
  • Brand AAP
  • Model Number 4087BPN16X25
  • Pipe Size (inch) 10"
  • Approx. Weight kg/pc 18.76

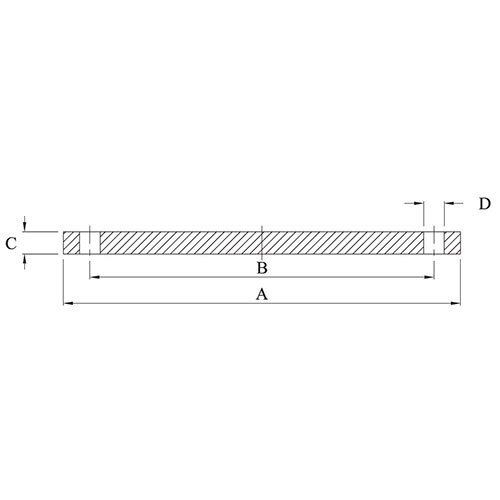

  • Flange Outside Diameter (A) 405
  • Drilling Bolt Circle Diameter (B) 356
  • Drilling No. Of Holes 8
  • Drilling Bolt Size M20
  • Type Blind Flat Faced Flange
SKU: A0079072

AAP 10" Blind Flat Face Flange AS4087 PN16 - 4087BPN16X25

AAP - Blind Flat Faced Flange

$213.53
RRP $410.64
SAVE $197.11 (48%)
