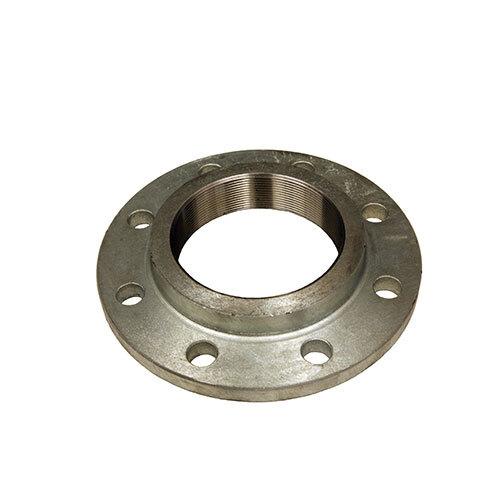

AAP 1" Gal Screwed Forged Steel Plate Flange BS10 Table-E SFE25G

Description

Screwed Flanges

Standard: BS10 - specification for Flanges and Bolting for Pipes, Valves, and Fittings (British)

APPLICATION: Water Supply, Oil, Gas, Petrochemical, Irrigation, Fire Services, General Industry, Construction.

MARKING: All Flanges when possible will display a heat number, size, table, grade and dimensional standard

About Forged Steel Flanges

Forged Steel flanges are commonly used and specified in the Oil, Gas, Petrochemical, and mining sectors, where pressure, temperature and safety considerations often specify the ANSI B16.5, ASME B16.47, or BS4504 standards.
The manufacturing method involves the hot forging of suitable steels prior to ?nal machining

Specifications

AIMS SKU A0081699

Brand AAP

Model Number SFE25G

Pipe Size (inch) 1"

Approx. Weight kg/pc 0.57

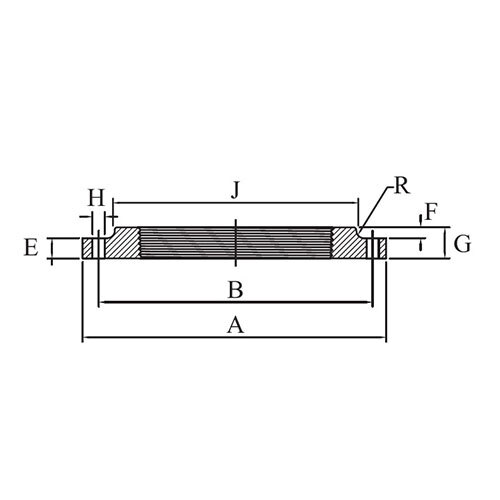

Flange Outside Diameter (A) 114.3

Flange Thickness (E) 7.1

Drilling Bolt Circle Diameter (B) 82.6

Drilling Holes Diameter (H) 14

Drilling No. Of Holes 4

Drilling Bolt Size M12

Hub Diameter (J) 52.4

Length Thru Hub (G) 18.2

Radius Of Boss 6.3

F 11.1

Type Screwed Forged Steel Flange
