Description

AAP Coupling - Threaded NPT Available in Black

(High-Pressure Fittings)

  • Rating: Threaded End – 3000lbs
  • Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
  • Threads: ANSI B1.20.1 – American National Standard Taper Thread (NPT)
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size
  • finishing: Available in Black, Hot-Dipped, Stainless Steel

Specifications

  • AIMS SKU A0079281
  • Brand AAP
  • Model Number PCP08

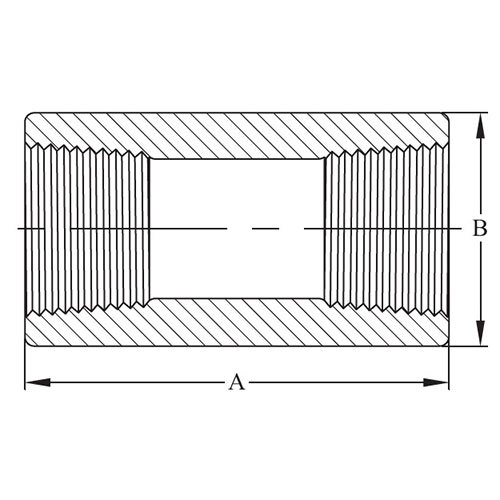

  • B 19
  • Length (A) 35
  • Pipe Size (inch) 1/4
  • Pipe Size (mm) 8
  • Approx. Kg/pc 0.04
  • Type Threaded Coupling
  • Fitting Thread Form NPT
  • Pipe Fitting Material Finish Black
SKU: A0079281

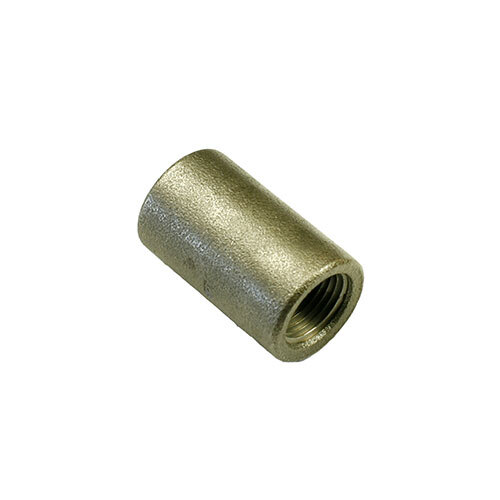

AAP 1/4", 8mm High Pressure Threaded Coupling NPT Black PCP08

AAP - Coupling - Threaded

$3.71
RRP $6.17
SAVE $2.46 (40%)
