Description

AAP 90° Elbow Socket Weld

(High-Pressure Fittings)

  • Rating: Socketweld End – 3000lbs
  • Standards: ANSI B16.11 (2009) - Forged Steel Fittings, Socket - Welding and Threaded
  • Marking:
    • Carbon and Alloy Steel – Market by Stamping
    • 3/8" and under: Brand only
    • 1/2" to 4": marked brand, material, heat number, B16 (to state that it’s an ANSI B16 product), pressure and size

Specifications

  • AIMS SKU A0079416
  • Brand AAP
  • Model Number PE32S
  • B 42.7
  • Pipe Size (inch) 1-1/4
  • Pipe Size (mm) 32
  • Approx. Kg/pc 0.84

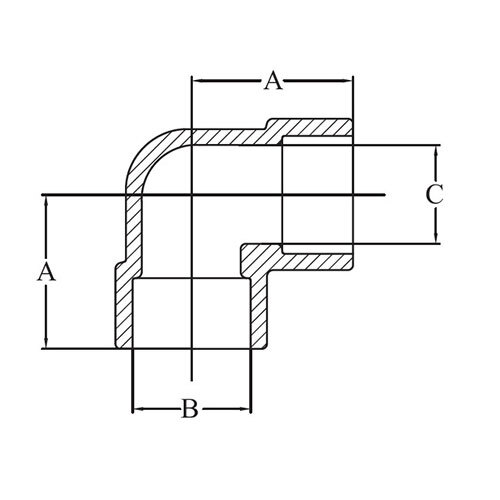

  • Center To End (A) 39.5
  • C 34.3
  • Socket Bore Diameter (B) 43.1
  • Bore Diameter Of Fittings ( C ) 35.8
  • Type Socket Weld Elbow
  • Pipe Fitting Connection Socket Weld
  • Specific Fitting Shape 90°
  • Fitting Thread Form NPT
SKU: A0079416

AAP 1-1/4", 32mm 90° High Pressure Elbow Socket Weld PE32S

AAP - Socket Weld - 90° Elbow

$17.52
RRP $32.70
SAVE $15.18 (46%)
