Specifications

AIMS SKU A0080901
Brand AAP
Model Number SSFEBSP31640
Pipe Size (inch) 1-1/2

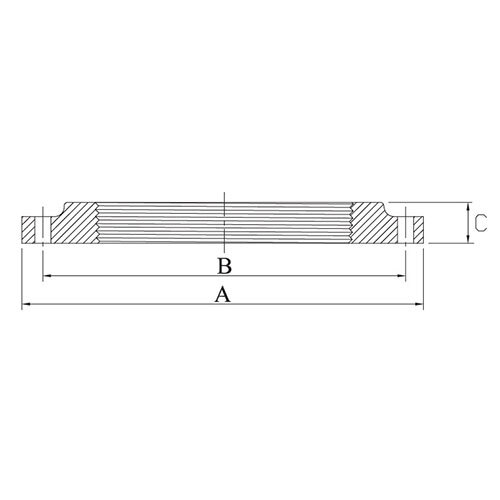

Outer Diameter (A) mm 133.3
Pipe Size (mm) 40
Holes Diameter 14
No. Of Holes 4
Approx. Kg/pc 1.02
Thickness 21.4
Circle Diameter (B) 98.4
Bolt Size M12

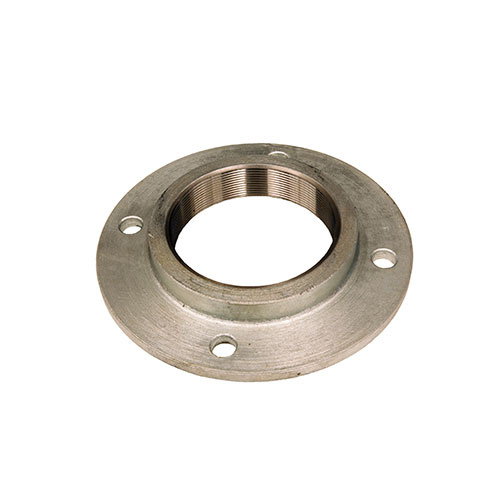

• Type BSP Flange
• Fitting Material 316 Stainless Steel
