Description

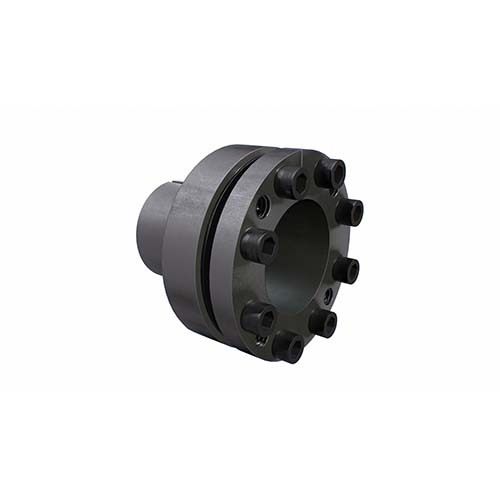

Locking Assembly - Self-Centering Unit Type 2, Flanged

Locking Assemblies provide reliable, high strength keyless connections by converting locking screw clamp loads into radial contact pressures applied simultaneously to both the shaft and the bore of the mounted component.

The resulting zero-backlash mechanical interference fit will accommodate a high torque, thrust, bending, and/or radial loads.

Locking Assemblies provide reliable, high strength keyless connections for shaft-driven devices.

When the Locking Units bolts are tightened plates engage with both the shaft and the inside circumference of the driven component.

Specifications

AIMS SKU A0124541

Brand Reach

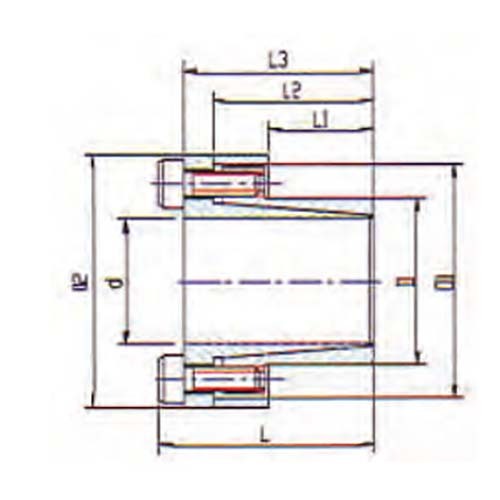

Dimensions (D) mm 120

Dimensions (L1) mm 65

Dimensions (L2) mm 85

Dimensions (L3) mm 96

Dimensions (L) mm 106

Dimensions (D2) mm 153

Dimensions (D1) mm 144

Passing Axis Pressure Ft Kn 222

Passing Torque Mt Nm 10522

Axis P N/mm2 106

Hub P1 N/mm2 84

Locking Screw Quantity 14

Locking Screw Size M4x25

Locking Screw Locking Torque 84

Dimension (d) mm 95
