Description

ASA Simplex Plate Wheel Sprocket

Sprockets to suit ASA roller chains.
American standard sprockets are made to suit the American standard (ANSI / ASA) roller chains.

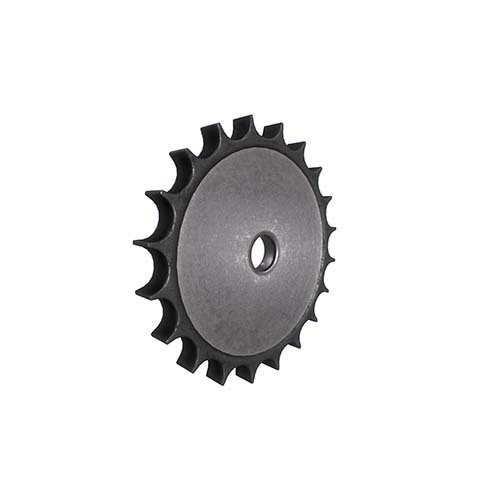

Platewheel sprockets are a flat sprocket with teeth around the outside diameter of the sprocket body consisting of a straight "pilot bore" hole in the centre.

Specifications

AIMS SKU A0062372

Strand Simplex

Chain Number 60

Number of Teeth 60

Chain Pitch (mm) 19.05

Chain Inside (mm) 12.7

Chain Roller ø (mm) 11.91

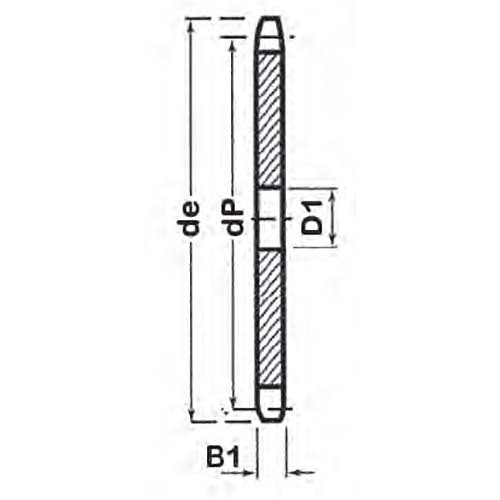

Outer Diameter (mm) De 374.2

Pitch Diameter (mm) Dp 363.99

Bore Diameter (mm) D1 25

Tooth Width (mm) B1 11.7

Type Plate Wheel Sprocket
System of Measurement American (ASA)
Pitch (inch) 1/2"

Calculate Shipping

Resources

Technical Data Sheet

Finer Sprockets Catalogue
