50mm Shaft Collar Zinc Plated w/ Single Grub Screw FSC-50 - Finer Power Transmissions

Description

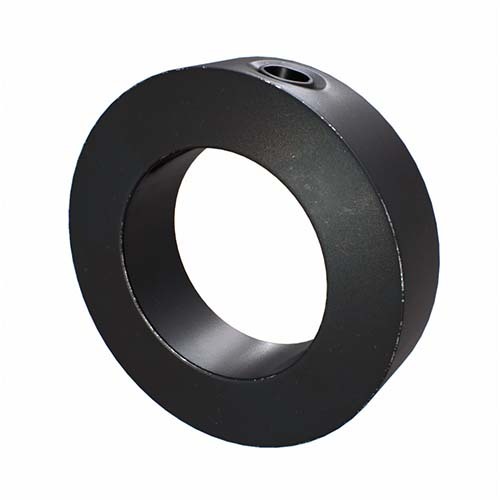

Shaft Collar - Zinc plated

Shaft Collars are ring-shaped components used as mechanical stops, locating components and bearing faces fastened with grub screws.
Simple design
Easy installation
Set screw collars are most effective when used on a shaft made of a material which is softer than the set screw.

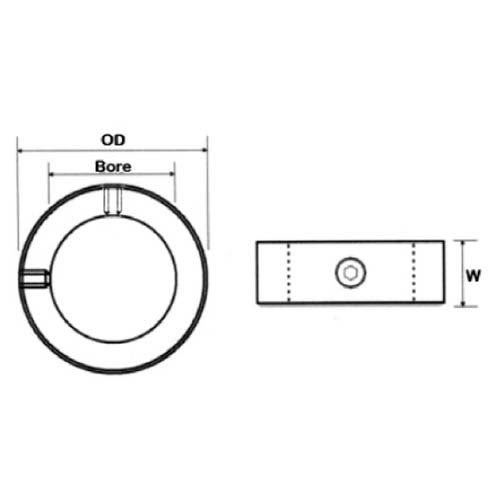

Specifications

AIMS SKU A0126713

Bore (mm) 50

w (mm) 18

Bore Tolerance +0.01 to 0.05mm

Width Tolerance +0.08 to -0.025

Approx Kg 0.4

O.D. (mm) 80

Screw Size (mm) M10*12

Type Shaft Collar
System of Measurement Metric
Material Finish Zinc Plated

Calculate Shipping

Resources

Technical Data Sheet
