40-1-70 Tooth ASA 1/2" Pitch Simplex Plate Wheel Sprocket - Finer Power Transmissions

Description

ASA Simplex Plate Wheel Sprocket

Sprockets to suit ASA roller chains.
American standard sprockets are made to suit the American standard (ANSI / ASA) roller chains.
Platewheel sprockets are a flat sprocket with teeth around the outside diameter of the sprocket body consisting of a straight "pilot bore" hole in the centre.

Specifications

AIMS SKU A0062281

Strand Simplex

Chain Number 40

Number of Teeth 70

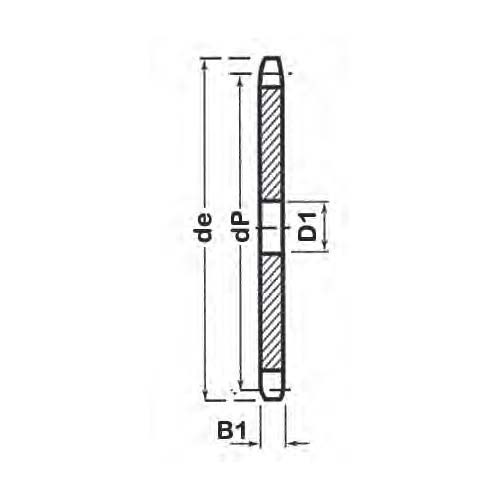

Outer Diameter de (mm) 289.7

Pitch Diameter dp (mm) 283.07

Bore Diameter D1 (mm) 25

Tooth Width B1 (mm) 7.2

Chain Pitch (mm) 12.7

Chain Inside (mm) 7.92

Chain Roller ø (mm) 7.92

Type Plate Wheel Sprocket
System of Measurement American (ASA)
Pitch (inch) 1/2"
