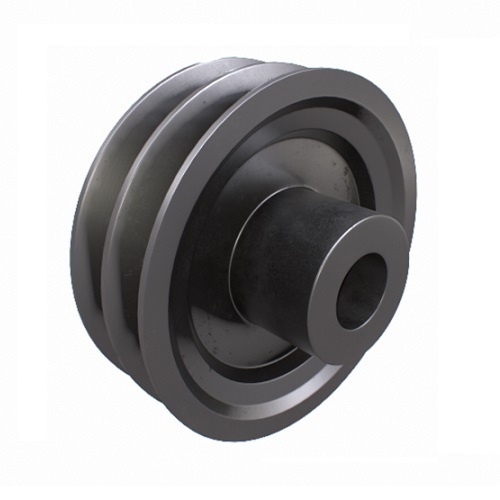

B Section Pilot Bore V Pulley Aluminium (1 to 2 Grooves)

• The V-pulley is disc-type with a cylindrical bore
• The V-pulley has a fixed/finished bore and is supplied with a keyway
• The V-pulley is applicable to keyed shaft types
• The V-Pulley has a maximum peripheral speed of 1200 meters/min
• To be used for light-duty applications

Construction

• Material: Aluminium
• Quality manufactured in Australia by Australian Pulley Co.
• V-pulleys are available from stock in both pilot bore (1/2-in) and finished bore options (5/8-in, 3/4-in, and 1-in).
• V-pulleys are available in both single and double groove types for use with A, B, & M- section V-Belts.
• Refer to the product data sheet for other technical details.

Advantages/Features

• Double-groove v-pulley is used to further increase the power transmission capacity.
• The double-groove configuration distributes the torque across the v-belts and provides mechanical redundancy.
• V-pulley dimensions are accurate as they are manufactured in CNC Machine shops and foundries.
• V-pulley grooves grip the belts, helping to reduce slippage and maintain efficiency.
• A grub screw is provided with the v-pulley which forces down on key steel and stops it from sliding out.
• The keyway ensures an intimate fit along the axle to transfer torque between the components.
