16B-1-45 Tooth BS 1" Pitch Simplex Plate Wheel Sprocket - Finer Power Transmissions

Description

BS Simplex Plate Wheel Sprocket

Sprockets to suit BS roller chains.
British standard sprockets are made to suit the British standard (BS) roller chains.
Platewheel sprockets are a flat sprocket with teeth around the outside diameter of the sprocket body consisting of a straight "pilot bore" hole in the centre.

Specifications

AIMS SKU A0062452

Strand Simplex

Chain Number 16B

Number of Teeth 45

Chain Pitch (mm) 25.4

Chain Inside (mm) 17.02

Chain Roller ø (mm) 15.88

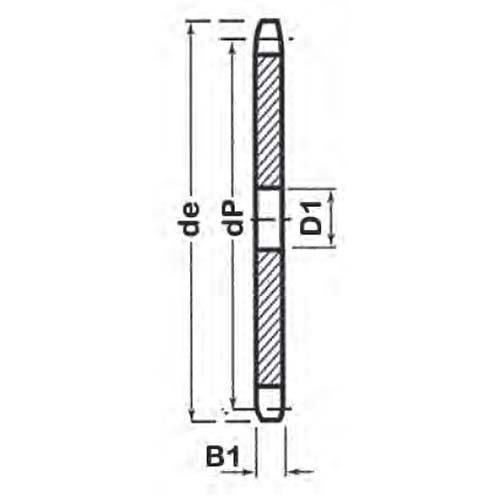

Outer Diameter (mm) De 377.9

Pitch Diameter (mm) Dp 364.1

Bore Diameter (mm) D1 25

Tooth Width (mm) B1 16.2

Type Plate Wheel Sprocket
System of Measurement British (BS)

Calculate Shipping

Resources

Technical Data Sheet

Sprockets & Idler Sprockets Catalogue
