Specifications

AIMS SKU A0059944
Belt Width (mm) 25
Number of Teeth 16
Pitch (mm) 10
No. of Teeth 16
Outer Diameter (dd) 50.93 mm
Pitch Circle Diameter (da) 49.05 mm
Flange Diameter (dB) 54 mm
Width (b1) 30 mm
Overall Width (b) 40 mm
Hub Diameter (d) 35 mm
Bore Diameter (d) 8
Finished Bore Hole (max) 20 mm
Suits Belt Size (width) 25 mm

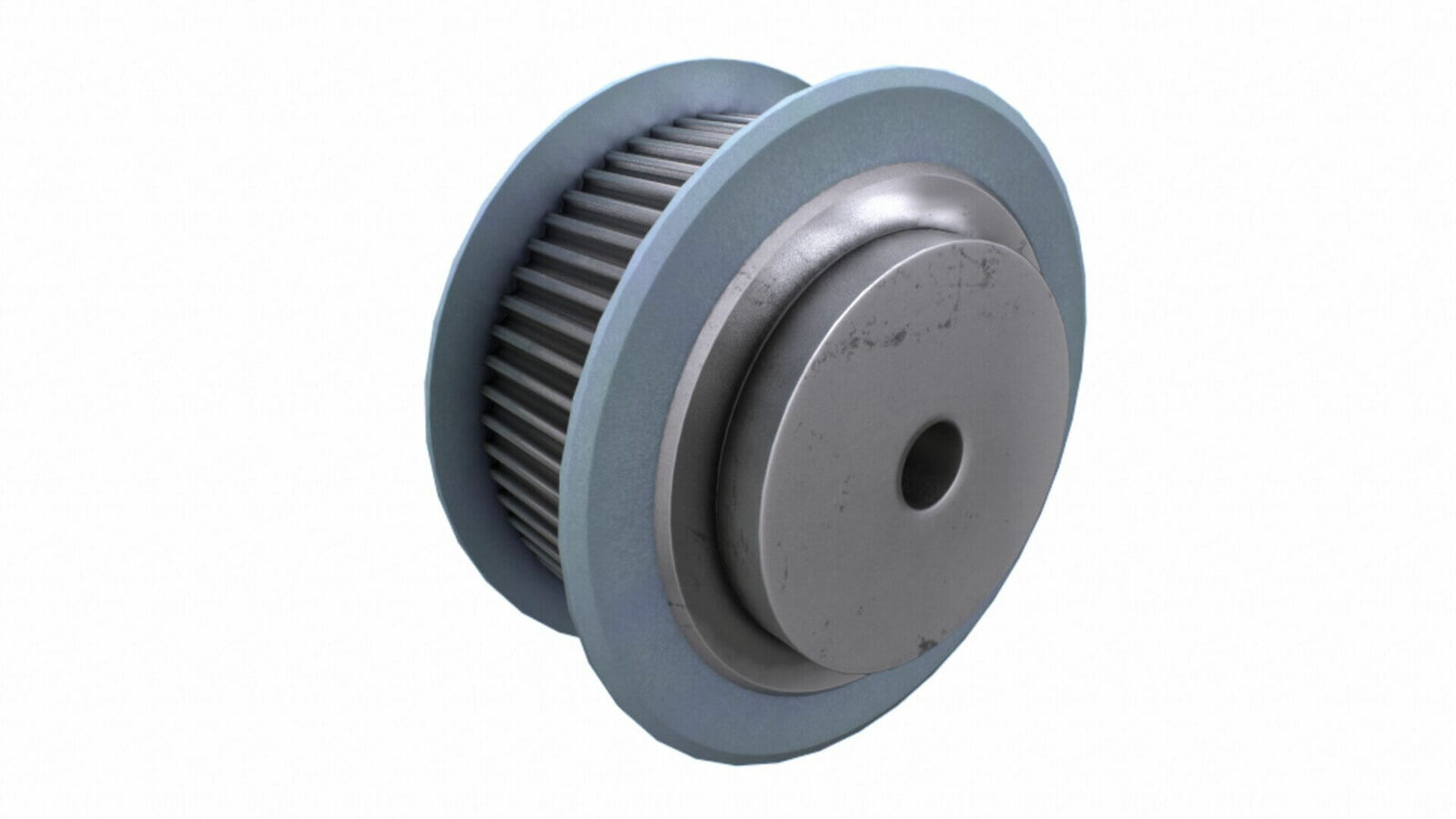

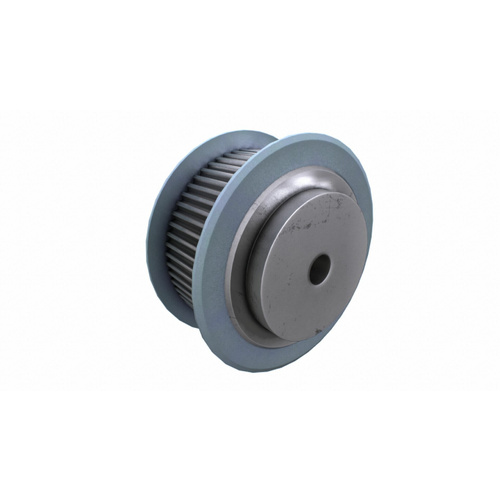

• Type Pilot Bore Timing Pulley
• Material Aluminium
• Section T10
• Pitch (mm) 10
