Description

BS Simplex Plate Wheel Sprocket

Sprockets to suit BS roller chains.
British standard sprockets are made to suit the British standard (BS) roller chains.
Platewheel sprockets are a flat sprocket with teeth around the outside diameter of the sprocket body consisting of a straight "pilot bore" hole in the centre.

Specifications

AIMS SKU A0062339

Strand Simplex

Chain Number 10B

Number of Teeth 24

Chain Pitch (mm) 15.88

Chain Inside (mm) 9.65

Chain Roller ø (mm) 10.2

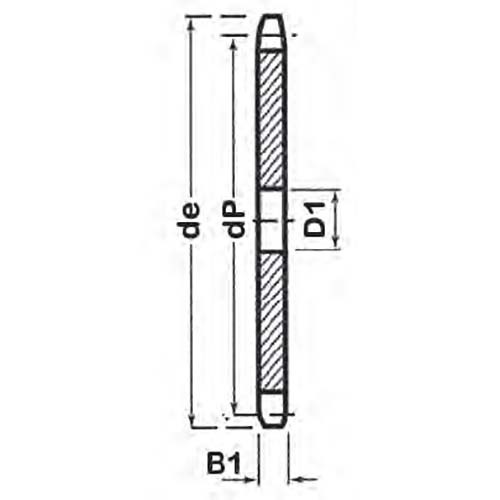

Outer Diameter (mm) De 128.5

Pitch Diameter (mm) Dp 121.6

Bore Diameter (mm) D1 16

Tooth Width (mm) B1 9.1

Type Plate Wheel Sprocket
System of Measurement British (BS)
