Description

BS Simplex Plate Wheel Sprocket

Sprockets to suit BS roller chains.
British standard sprockets are made to suit the British standard (BS) roller chains.
Platewheel sprockets are a flat sprocket with teeth around the outside diameter of the sprocket body consisting of a straight "pilot bore" hole in the centre.

Specifications

AIMS SKU A0062263

Strand Simplex

Chain Number 06B

Number of Teeth 34

Chain Pitch (mm) 9.525

Chain Inside (mm) 5.72

Chain Roller ø (mm) 6.35

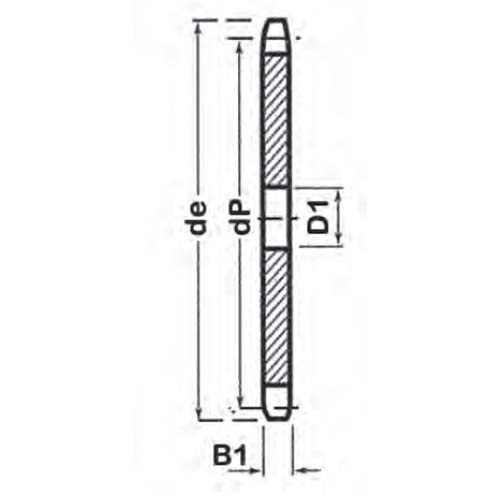

Outer Diameter (mm) De 106.9

Pitch Diameter (mm) Dp 103.2

Bore Diameter (mm) D1 14

Tooth Width (mm) B1 5.3

Type Plate Wheel Sprocket
System of Measurement British (BS)
