Toho Yellow Screw Pin Bow Shackle Galvanised Grade S 35mm 13Tonne

Description

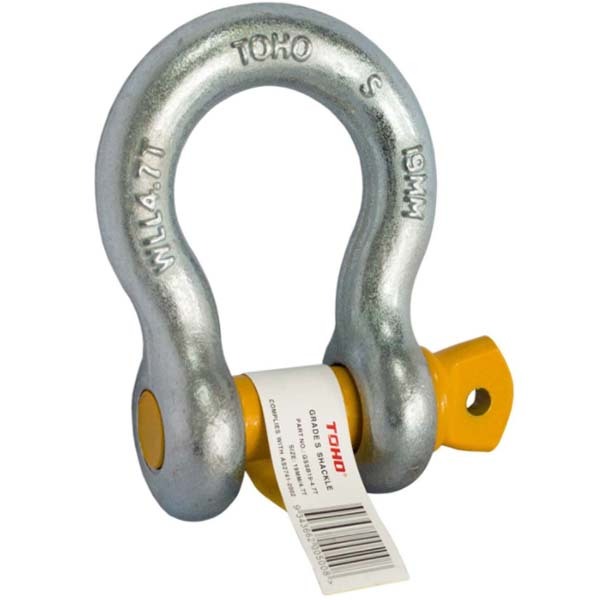

Toho Yellow Screw Pin Bow Shackle Galvanised Grade S

Compliant and meet the requirement of AS 2741.
The most common shackles used in lifting applications, with a high strength to size ratio.
Easy and effective way of providing a connection of slings, chains and wire ropes.
Supplied in a galvanised finish with a yellow painted pin.
Suitable applications: Marine, agricultural, towing, & general industrial.

Specifications

AIMS SKU A0170520

Brand Toho

Model Number GSSB35-13T

Barcode Number 9343662004957

WLL (T) 13

Body Diametre 35 mm

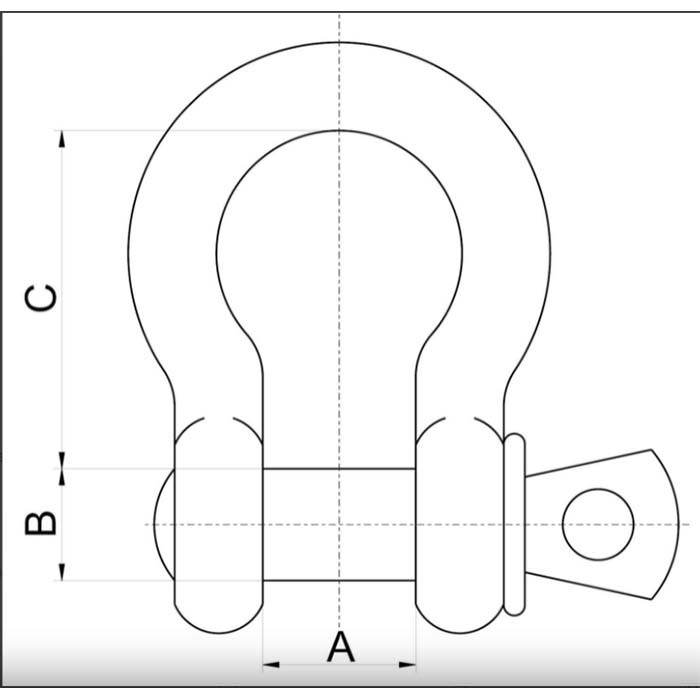

Throat Opening (A) mm 57

Pin Diametre (B) mm 38

Throat Depth (C) mm 113

Type Bow Shackle
Finish Galvanised
Grade Grade S

Calculate Shipping

Resources

Technical Data Sheet
