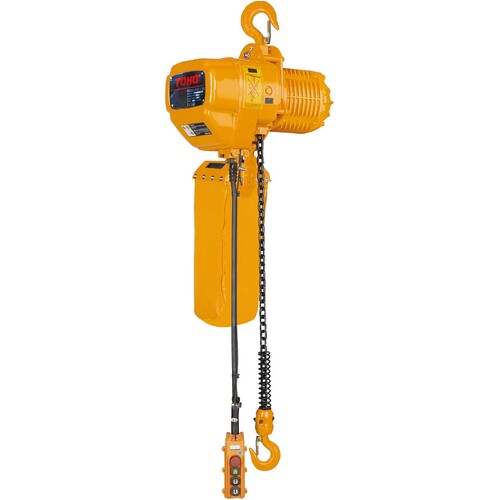

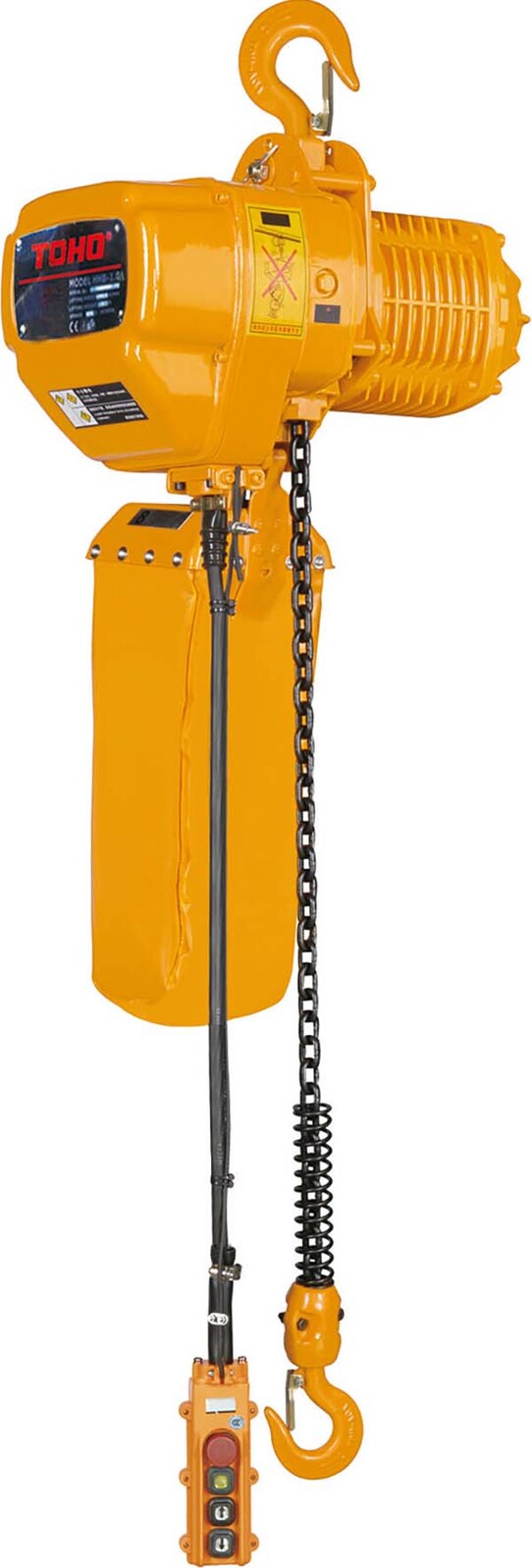

Toho TECH-3PH-2SP-0503 5T 3m Three Phase 2 Speed Electric Chain Hoist

Description

***Lead time is 6 to 8 weeks from receipt of the order. Contact AIMS for further assistance.***

Toho Electric Chain Hoists 3 Phase 2 Speed

Load Limited
Thermal Prevention Device
Light weight, compact design with high efficiency motor
Pressed steel structure, high strength body
High tensile alloy steel top & bottom hooks
Grade 80 ‚Äì 7.1mm Alloy Steel load chain
Limit switches fitted at top and bottom ends to prevent chain runout
415V, 50Hz Dual speed Motor 1.8kw. (3 Phase)
Complies with ASNZS 1418.2 standard
Hoists can be re-chained to your required length (limits apply)
IP Rating Hoist: IP54 Control: IP65
* Hoists can be re-chained to your required length (limits apply)

Specifications

AIMS SKU A0170695

Brand Toho

Model Number TECH-3PH-2SP-0503

Barcode Number 6972488872704

Motor Power (kW) 3

Net Weight (kg) 151

Voltage Three Phase (415V)

Lifting Speed (m/min) 2.7/0.9

Capacity (Tonne) 5

Phase 3-Phase

Standard Lift 3 m

Running Test Load (kN) 62.5

No. of Chain 2

Dia of Chain (mm) 11.2

Extra weight per metre of extra lift (kg) 2.6

Type Electric Hoist
