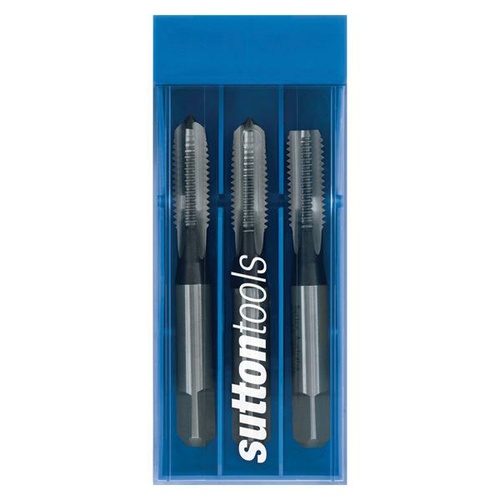

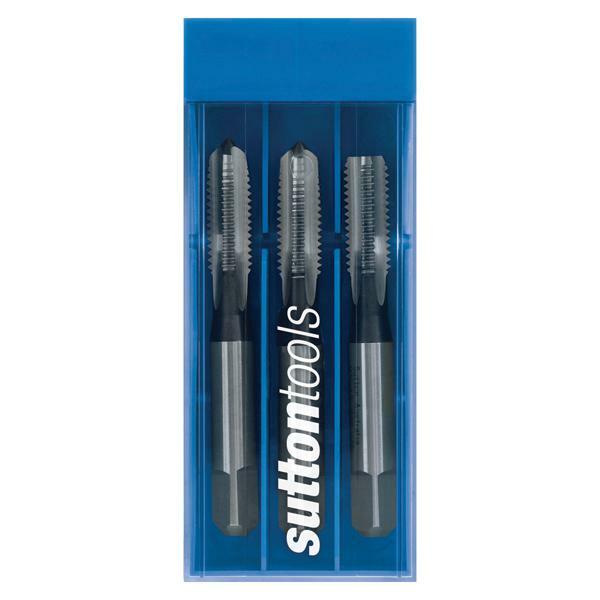

Specifications

AIMS SKU A0016158
Brand Sutton Tools
Model Number T9050238
Barcode Number 9311963092904
Diameter (inch) 3/32
TPI 48
Shank (mm) 2.8
L1 (mm) 45
L2 (mm) 10
z 3
Drill Size (mm) 1.85
L4 (mm) 5
Square Size (mm) 2.24
• Group Code T905
• System of Measurement ISO529
• Thread Form British Standard Whitworth 55 (BSW)
• Material High Speed Steel (HSS)
• Finish Bright
• Lead Taper/Intermediate/Bottoming
• Application N (for normal general purpose type materials)
• Shank Form Reinforced Shank (with square drive)
• Max Cut Depth 1xD
• Tap Type Straight Flute
• Nut Tolerance Z3 Medium
