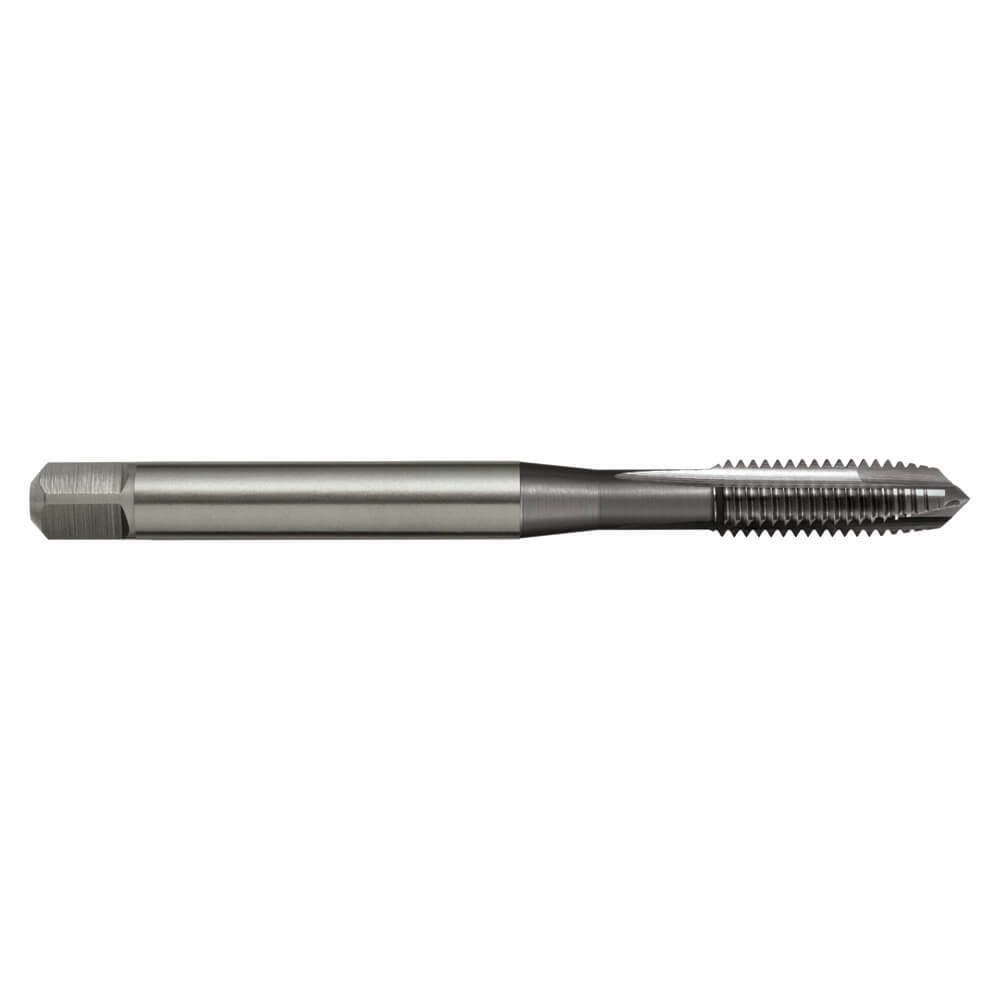

Sutton T6941270 UNF 1/2 x 20 Spiral Point Tap - Black Magic - HSSE V3 HSS

Description

Features

Suitable for materials up to 1000N/mm2
Through holes
Depths up to 3 x d1

Specifications

Designation: UNI (for universal materials)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Hardlube
Max Cut Depth: 3xD
Shank Form: Reinforced Shank (with square drive)
Type: Spiral Point (Gun)
Standard: DIN2184-1
Thread Form: UNF
Nut Tolerance: 2BX
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - High alloy, cast & tool: Annealed
Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
Stainless Steel – Austenitic: Age Hardened
Stainless Steel – Duplex
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable

Specifications

AIMS SKU A0016009

Brand Sutton Tools

Model Number T6941270

Barcode Number 9311963550848

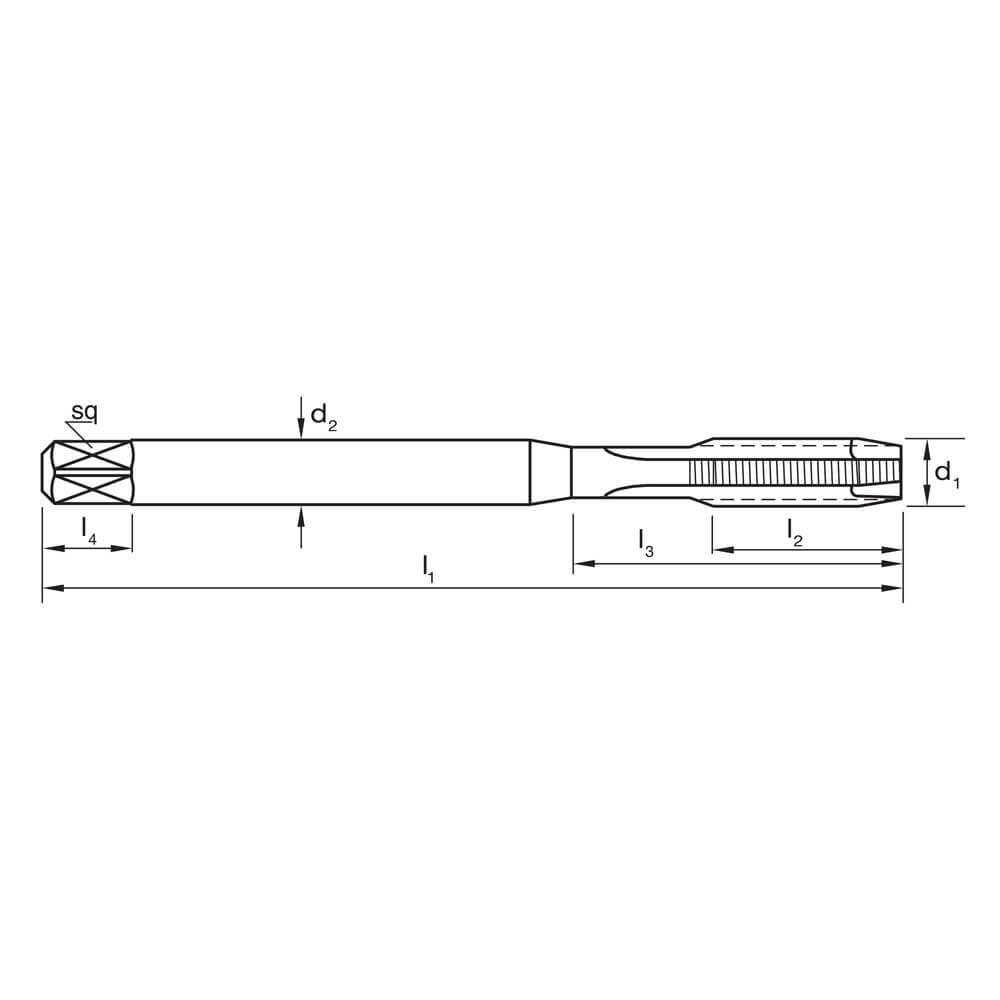

Diameter (inch) 1/2

TPI 20

Shank (mm) 9

L1 (mm) 100

Drill Size (mm) 11.5

Group Code T694
System of Measurement DIN2184-1
Thread Form UNF
Material Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish Hardlube
Lead Form B / 4.5 x P
Application UNI (for universal materials)
Shank Form Reinforced Shank (with square drive)
Max Cut Depth 3xD
Tap Type Spiral Point (Gun)
Nut Tolerance 2BX
