Specifications

AIMS SKU A0131472
Brand Sutton Tools
Model Number T6062400
Lead 2.5 x P

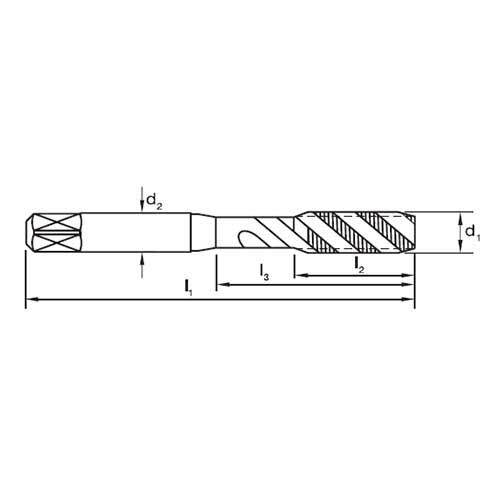

L1 (mm) 120
L2 (mm) 45
L3 (mm) -
Drill Size (mm) 21
Square Size (mm) 15
Geometry R40
Shank d2 (mm) 19
Flute 4
Colour Ring & Application N
Diameter Size d1 (mm) M24
Pitch Size (mm) 3
Limit P3

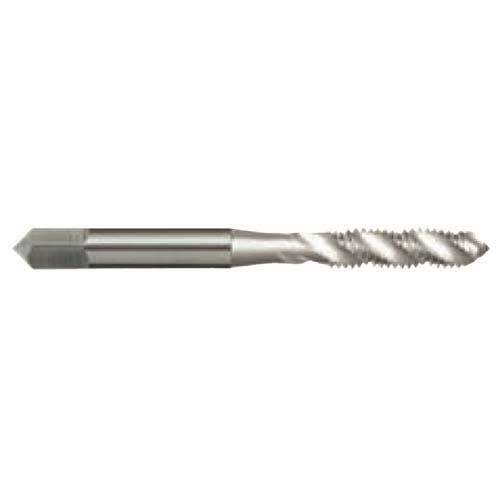

• Type Spiral Flute Tap
• Material HSSE-V3
• Finish Bright (Brt)
• Style 3
• Group Code T606
