Description

Descriptions

  • Universal use for slotting & finishing applications, with one tool
  • Optimized geometry for soft materials

Features

  • 3 Flute Endmill R40 W offers superior performance
  • TiAlN for longer tool life

Specifications

  • Designation: W
  • Material: SPM
  • Finish: TiAIN
  • Shank Form: A
  • Helix Angle: R40
  • Point Tolerance: e8
  • Shank Tolerance: h6
  • Point Form: Square End
  • Type: N (finishing)
  • Standard: DIN 844L

Applications

  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1 -110 HB
  • Optimal for Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn) – 100 HB

Specifications

  • AIMS SKU A0008742
  • Brand Sutton Tools
  • Model Number E1241200
  • Barcode Number 9311963409573

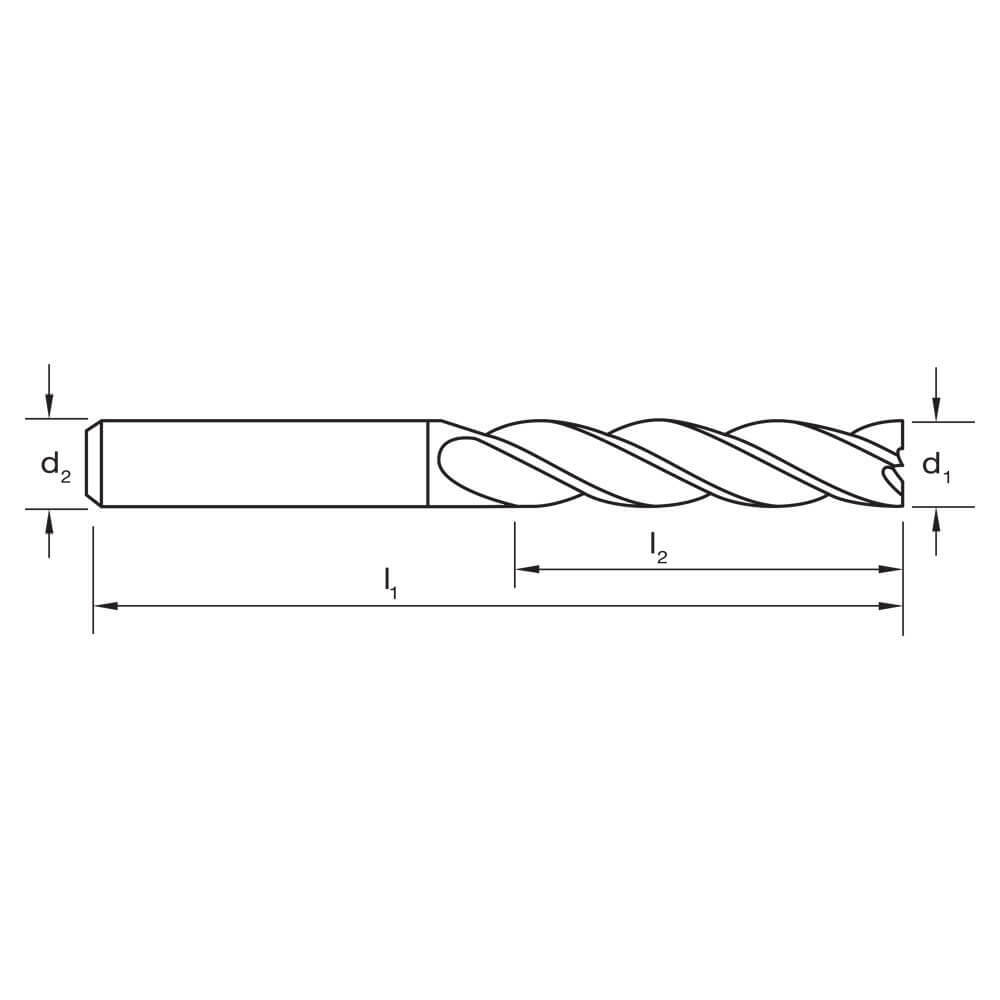

  • Cutting Tip (mm) 12
  • Overall Length (mm) 110
  • Shank (mm) 12
  • Flute Length (mm) 53
  • Group Code E124
  • System of Measurement DIN 844L,Metric
  • Material High Speed Steel Cobalt (SPM-HSS Co11%)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Flutes 3 Flute
  • Profile Square End
  • Reach Long
  • Helix Angle R40
  • Shank Form A
  • Shank Tolerance h6
  • Point Tolerance e8
  • Item Type N (finishing)
SKU: A0008742

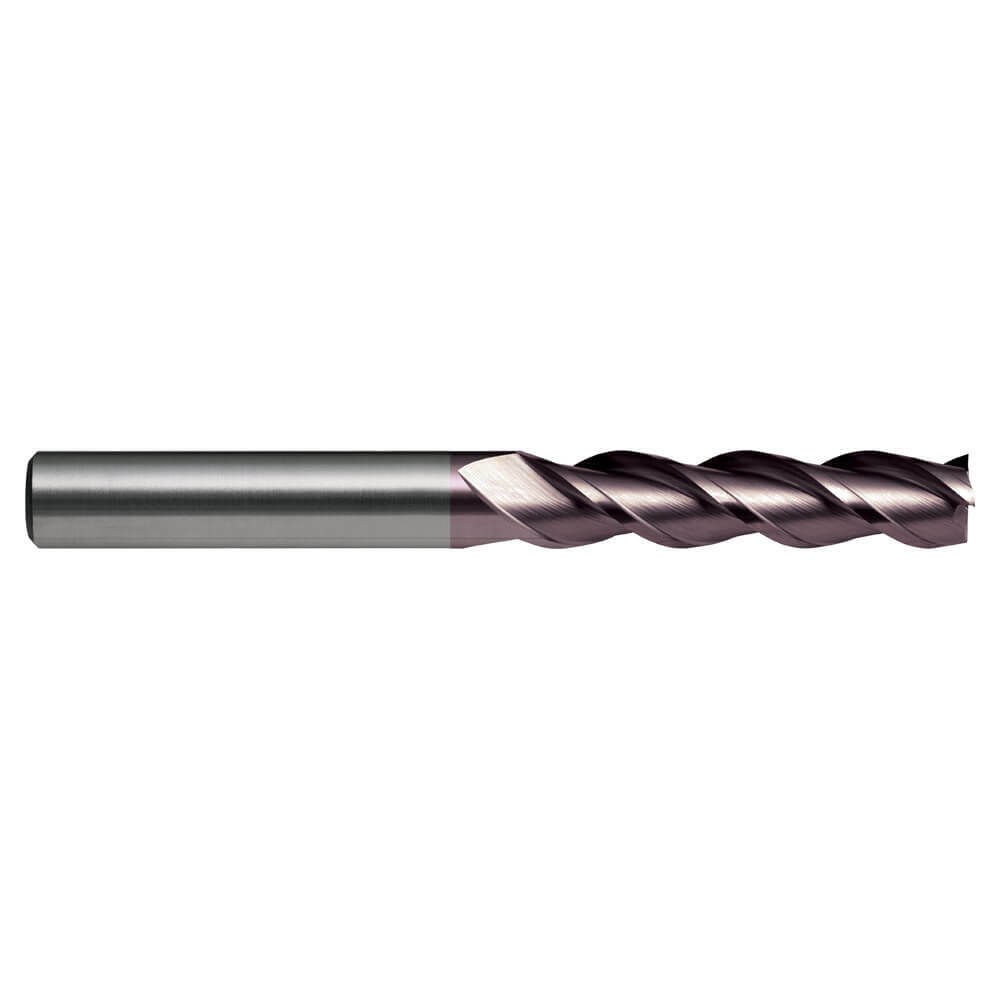

Sutton E1241200 12 x 12mm 3 Flute Endmill - HSS Co11% SPM - TiAlN - Long

Sutton Tools 3 Flute Endmills - R40 W - Long

$152.88
RRP $162.71
SAVE $9.83 (6%)
