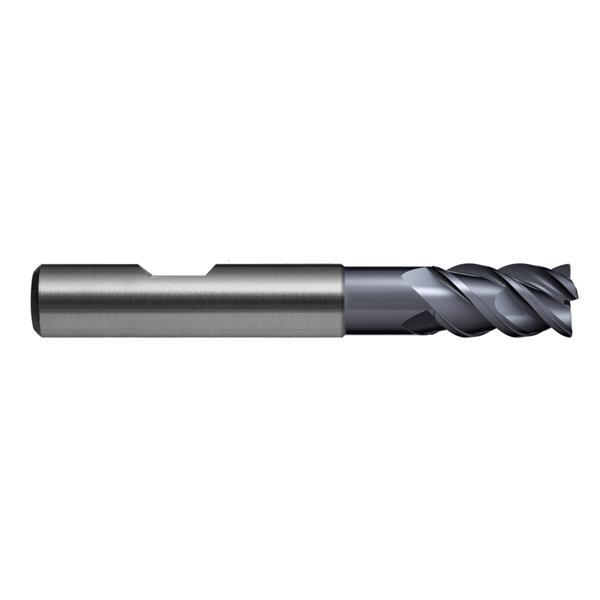

Sutton E5631000 10 x 72mm 4 Flute Endmill Carbide AlCrN - Sutton Tools

Description

4 Flute Endmills - R50 NH - Regular - Harmony DUO

VHM-ULTRA grade of carbide for high performance.

Features:

Endmill, 4 Flute, R50-NH, Long, Harmony DUO for high performance.

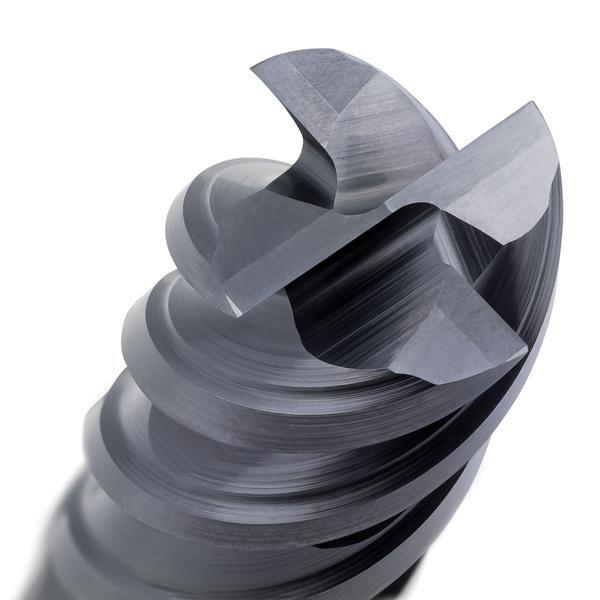

Dual stepped core for optimal stability.
Ideal design for pocket milling in MQL & HSC.
Suitable for materials up to 48 HRC.
AlCrN for longer tool life.

Specifications:

Designation: NH
Material: VHM-ULTRA
Finish: AlCrN
Shank Form: HB
Helix Angle: R50
Point Tolerance: h10
Shank Tolerance: h6
Point Form: 45° Corner Chamfer
Type: N (finishing)
Standard: DIN6527L
Rake Angle: 14

Applications:

Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements-300HB
Optimal for Steel - Low alloy & cast < 5% of alloying elements-350HB
Optimal for Steel - High alloy, cast & tool-325HB
Optimal for Stainless Steel - Duplex-250HB
Optimal for Stainless Steel - Precipitation Hardening-250HB
Optimal for Cast Iron, Grey (GG) - Pearlitic-260HB
Optimal for Cast Iron, Nodular (GGG) - Pearlitic-250HB
Optimal for High-temperature alloys - Fe based-280HB
Optimal for High-temperature alloys - Ni / Co-based-350HB
Optimal for High-temperature alloys - Ni / Co-based-320HB
Optimal for Titanium & Titanium alloys - Alpha alloys
Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
Optimal for Titanium & Titanium alloys - Beta alloys
Optimal for Cast Iron - Chilled-400HB

Specifications

AIMS SKU A0129361

Brand Sutton Tools

Model Number E5631000

System of Measurement DIN6527L

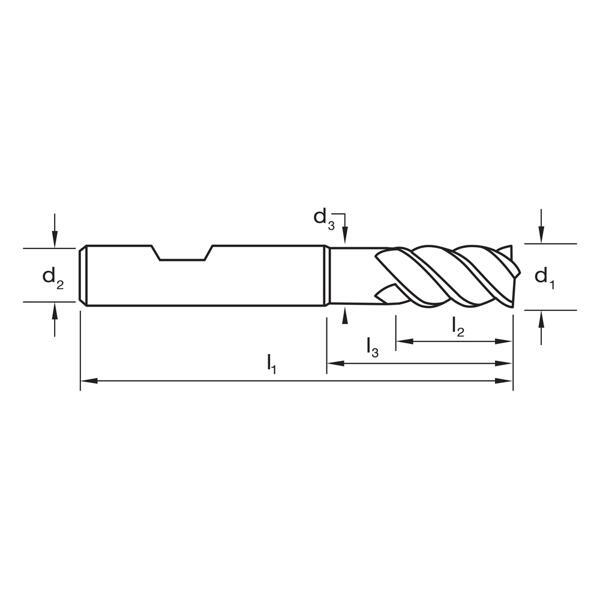

Cutting Tip (mm) 10

Overall Length (mm) 72

Shank (mm) 10

Flute Length (mm) 22

Helix Angle R50

Shank Form HB

Point Form 45° Corner Chamfer

Shank Tolerance h6

D3 (mm) 9.5

Point Tolerance h10

Rake Angle 14

L3 Reach Length (mm) 32

Sutton Designation NH

Type Endmill Harmony DUO
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Aluminium Chromium Nitride (AlCrN)
Flutes 4
Item Type N (finishing)
Group Code E563
