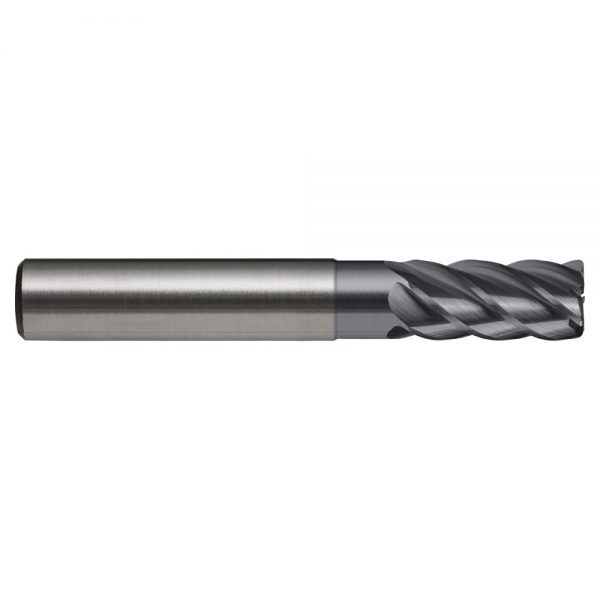

Sutton E4741005 10 x 72mm 5 Flute Corner Radius Endmill 0.5° Carbide Xceed HA - Sutton Tools

Description

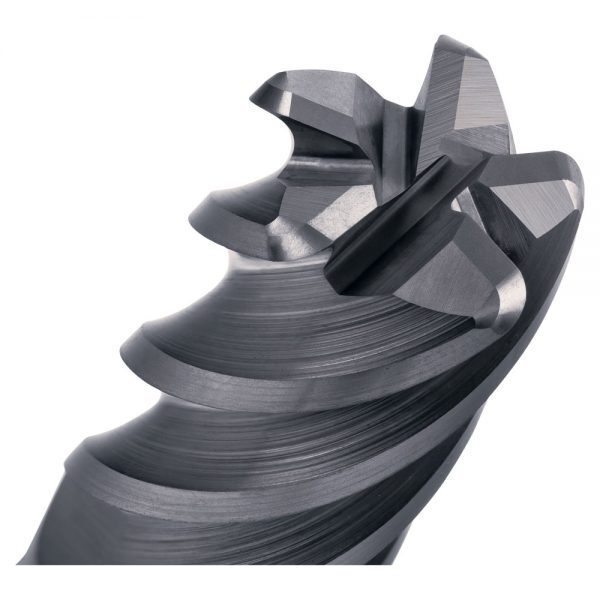

5 Flute Endmill - R40/42 Ni

Excellent solution for stainless steel and super alloy type materials.
Optimized geometry with variable helix design ensures high productivity.
Suitable for slotting$ side cutting and finishing applications with one tool.
XCeed for outstanding oxidation resistance and hot hardness.
VHM-ULTRA grade of carbide for high performance.

Specifications

Designation: Ni
Material: VHM-ULTRA
Finish: XCeed
Shank Form: HA
Helix Angle: R40/42
Point Tolerance: e8
Shank Tolerance: h6
Point Form: 45° Corner Chamfer
Type: N (finishing)
Standard: DIN6527L

Applications

Optimal for Stainless Steel - Austenitic-180HB
Optimal for Stainless Steel - Duplex-250HB
Optimal for Stainless Steel - Precipitation Hardening-250HB
Optimal for High-temperature alloys - Fe based-200HB
Optimal for High-temperature alloys - Fe based-280HB
Optimal for High-temperature alloys - Ni / Co-based-250HB
Optimal for High-temperature alloys - Ni / Co-based-350HB
Optimal for High-temperature alloys - Ni / Co-based-320HB

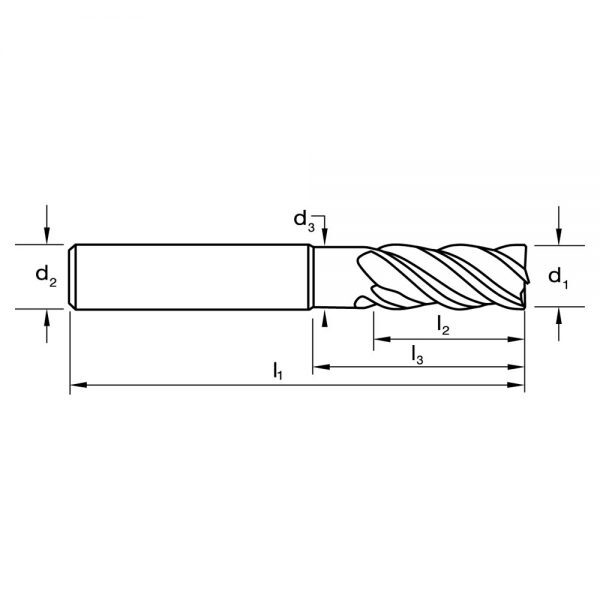

Specifications

AIMS SKU A0129565

Brand Sutton Tools

Model Number E4741005

System of Measurement DIN6527L

Cutting Tip (mm) 10

Overall Length (mm) 72

Shank (mm) 10

Flute Length (mm) 22

Helix Angle R40/42

Shank Form HA

Point Form 45° Corner Chamfer

Shank Tolerance h6

D3 (mm) 9.5

Point Tolerance e8

Rad 0.5

L3 Reach Length (mm) 32

Sutton Designation Ni

Type Endmill
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Xceed
Flutes 5
Item Type N (finishing)
Group Code E474
