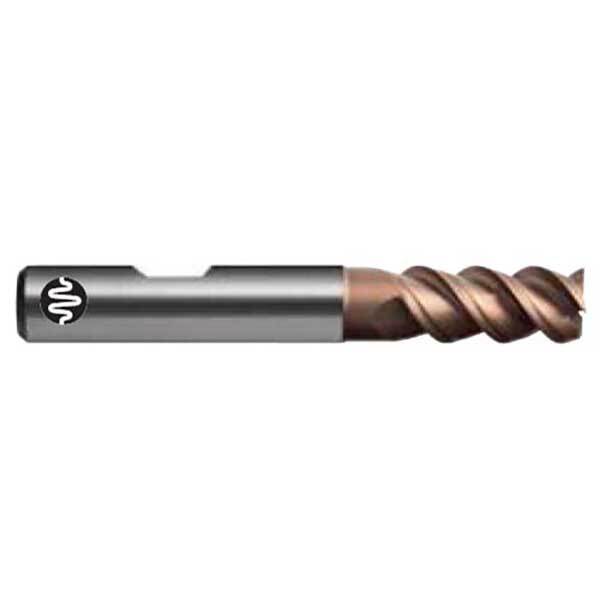

Sutton E4110600 6 x 57mm 3 Flute Endmill Carbide Ultra Helica Regular HB - Sutton Tools

Description

3 Flute Endmill - R55/54/56 VA - Regular - Harmony

Optimized geometry for stainless steels
Universal use for slotting and finishing with the one tool

Features

Endmill, 3 Flute, R55/54/56-VA, Long, Harmony for high performance

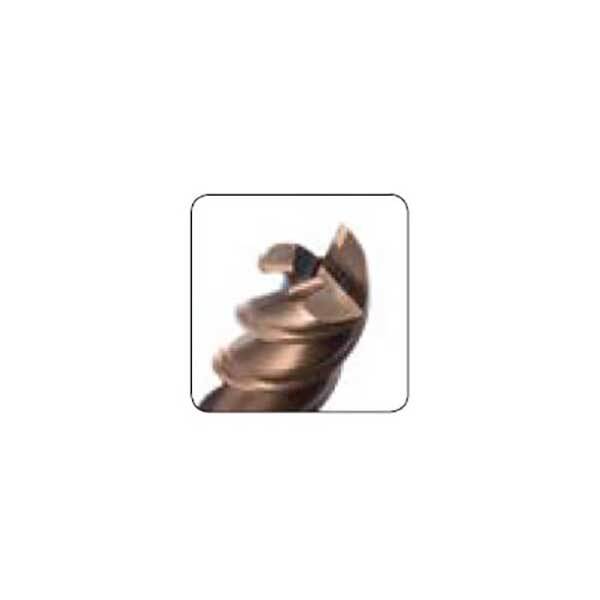

55/54/56° variable flute helix for chatter-free milling
Helica for superior wear resistance in stainless steel

Specifications

Designation: VA
Material: VHM-ULTRA
Finish: Helica
Shank Form: HB
Helix Angle: R55/54/56
Shank Tolerance: h5
Standard: DIN6527L

Applications

Optimal for Stainless Steel – Austenitic- 180 HB
Optimal for Stainless Steel – Duplex- 250 HB
Optimal for Stainless Steel - Precipitation Hardening- 250 HB
Optimal for High-temperature alloys - Fe based – 280 HB
Optimal for High-temperature alloys - Ni / Co-based – 350 HB
Optimal for High-temperature alloys - Ni / Co-based – 320 HB
Optimal for Titanium & Titanium alloys - Alpha alloys
Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
Optimal for Titanium & Titanium alloys - Beta alloys

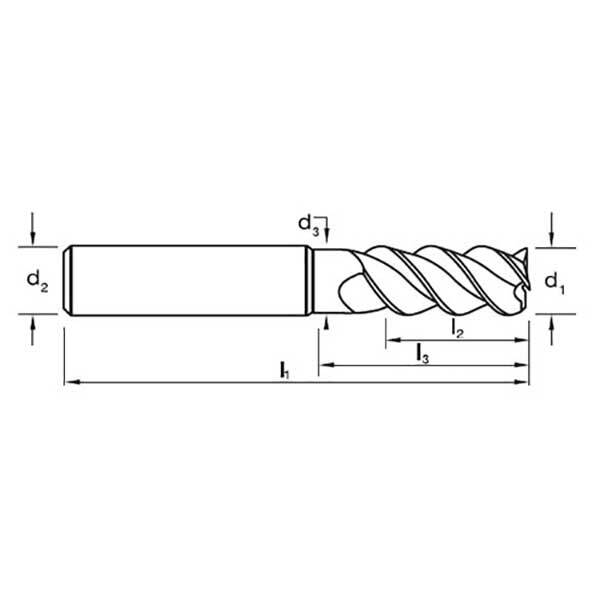

Specifications

AIMS SKU A0129954

Brand Sutton Tools

Model Number E4110600

System of Measurement DIN6527L

Cutting Tip (mm) 6

Overall Length (mm) 57

Shank (mm) 6

Flute Length (mm) 13

Shank Form HB

Shank Tolerance h5

D3 (mm) 5.7

L3 Reach Length (mm) 19

Product Group B0210

Sutton Designation VA

Geometry R55/54/56

Type Endmill Harmony
Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
Finish Helica
Flutes 3
Group Code E411
