Description

***Illustrations shown may vary from actual products. Please contact AIMS for further assistance.***

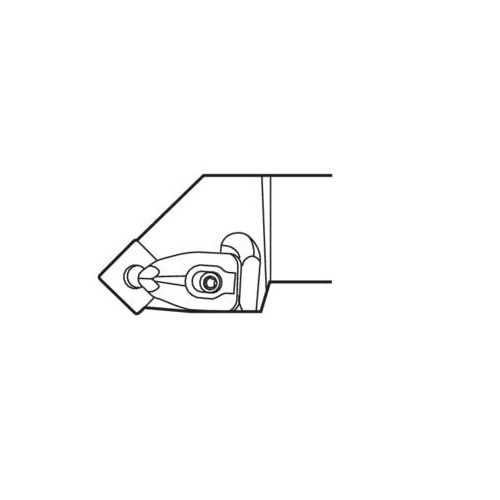

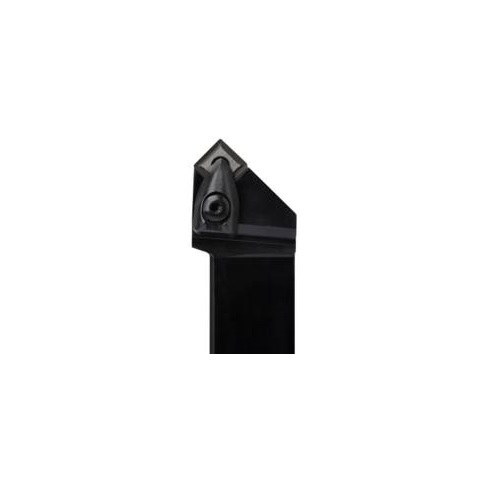

Seco Turning External Toolholder Top Clamp Left 45° S Insert Shape DSSNL1616H09-M

Turning External Toolholder (Top Clamp - S Type - S Insert Shape - M Surface)

  • Top clamp using the center hole.
  • S insert shape.
  • S tool type, offset shank with 45° side cutting edge angle.
  • M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114986
  • Brand Seco
  • Model Number 02588187
  • Barcode Number 88187025000104
  • Net Weight (kg) 1.46

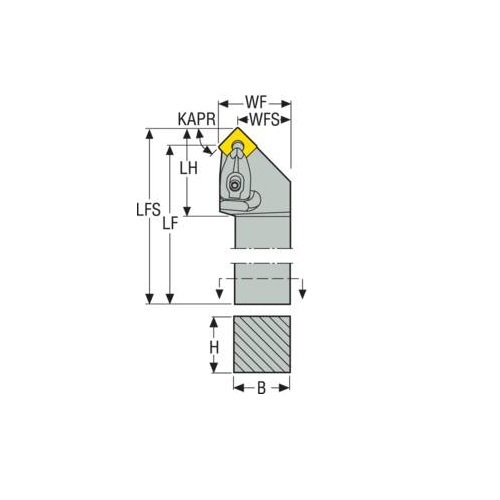

  • Designation DSSNL3232P19-M
  • Functional Length (LF) 171mm
  • Insert Shape Code (SC) S
  • Head Length (LH) 46mm
  • Functional Width (WF) mm 40
  • Cutting Edge Length (mm) 19
  • Inclination Angle (LAMS) 0.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) S
  • Tool Type S Type
  • Height Of Tool Holder Shank (H) mm 32
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Connection Text Workpiece Side (ctws) SN1906
  • Shank Width (b) mm 32
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 3232
  • Rake Angle Orthogonal (gamo) -8.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Top Clamp

Video

SKU: A0114986

Seco Turning External Toolholder Top Clamp 171 x 40 x 19mm Left 45° S Insert Shape DSSNL3232P19-M

Top Clamp - S Type - S Insert Shape - M Surface

$223.52
RRP $279.40
SAVE $55.88 (20%)
