Specifications

AIMS SKU A0114911
Brand Seco
Model Number 02588152
Barcode Number 88152025000102
Net Weight (kg) 1.302
Designation DDJNL3232P15-M
Insert Seat Size Code (SSC) 1506
Insert Shape Code (SC) D

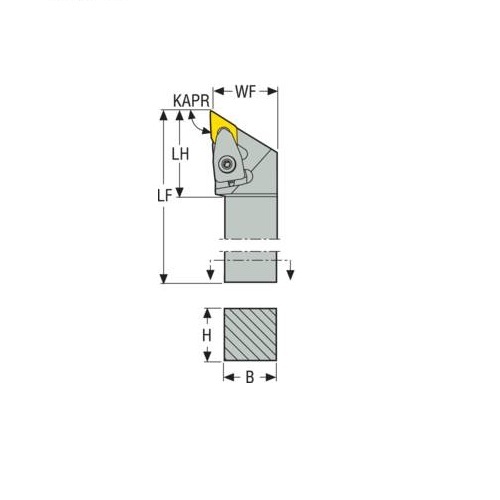

Head Length (LH) 42mm
Cutting Diameter Internal Minimum 3 (mm) 350
Ramping Angle Maximum (RPMX) 30.0 deg
Functional Width (WF) mm 40
Cutting Edge Length (mm) 15
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) J
Cutting Diameter Internal Minimum (DCINN) 350mm
Tool Type J Type
Functional Length (LF) 170mm
Shank Length (LS) mm 128
Height Of Tool Holder Shank (H) mm 32
Tool Cutting Edge Angle (KAPR) 93.0 deg
Functional Height (HF) mm 32
Cutting Depth Maximum (cdx) mm 7.8
Connection Text Workpiece Side (ctws) DN1506
Shank Width (b) mm 32
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 3232
Rake Angle Axial (gamp) -6.0 deg
Rake Angle Orthogonal (gamo) -6.0 deg
Rake Angle Radial (gamf) -6.0 deg

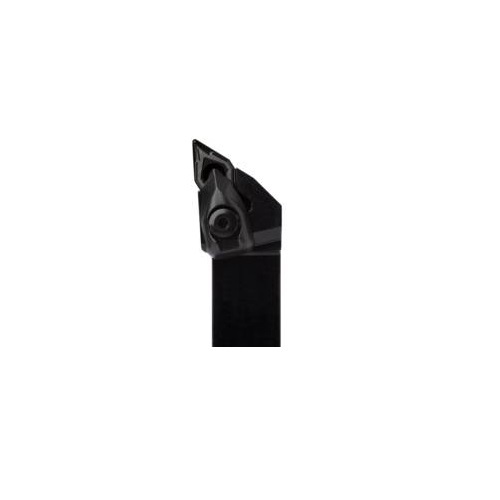

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External

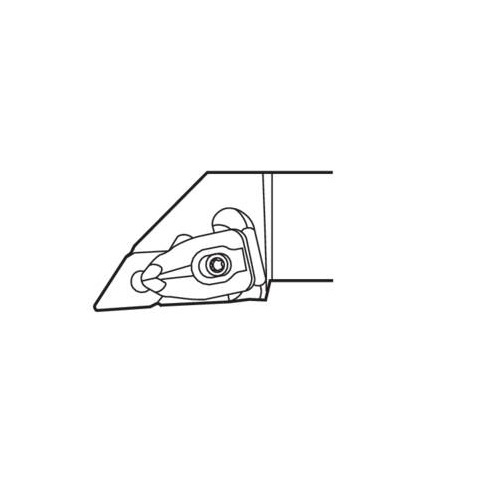

• Insert Clamping System (ICS) Top Clamp
