Specifications
- AIMS SKU A0114948
- Brand Seco
- Model Number 02588154
- Barcode Number 88154025000106
- Net Weight (kg) 1.034
- Designation DRSNR3225P12-M

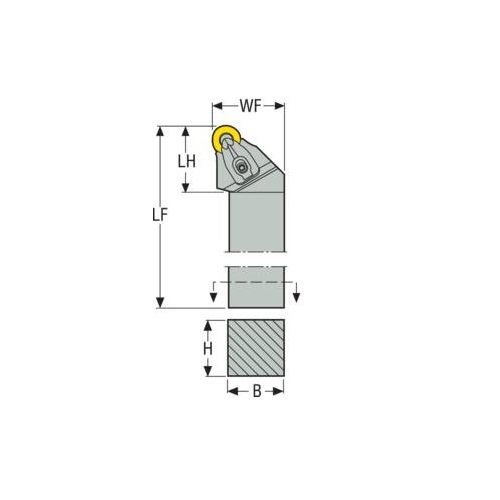

- Functional Length (LF) 170mm
- Insert Shape Code (SC) R
- Head Length (LH) 30mm
- Functional Width (WF) mm 32
- Cutting Edge Length (mm) 12
- Inclination Angle (LAMS) -6.0 deg
- Tool Cutting Edge Angle Code (KAPRC) S
- Tool Type S Type
- Height Of Tool Holder Shank (H) mm 32
- Tool Cutting Edge Angle (KAPR) 45.0 deg
- Connection Text Workpiece Side (ctws) RN1204
- Shank Width (b) mm 25
- Direction Of Cutting (hand) Right
- Connection Text Machine Side (CTMS) 3225
- Rake Angle Orthogonal (gamo) -6.0 deg
- Type Turning Toolholder
- Shank Type Square shank
- Version (internal/external/both) External
- Insert Clamping System (ICS) Top Clamp
SKU: A0114948

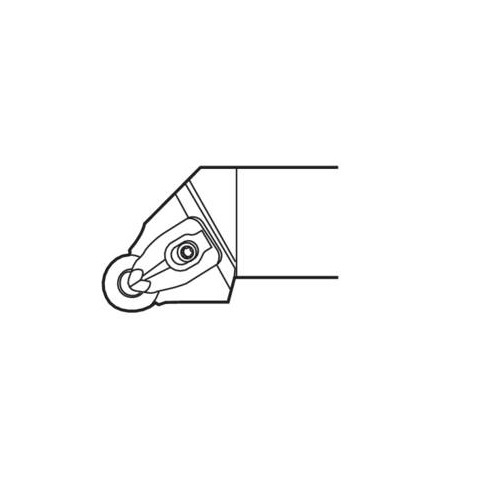

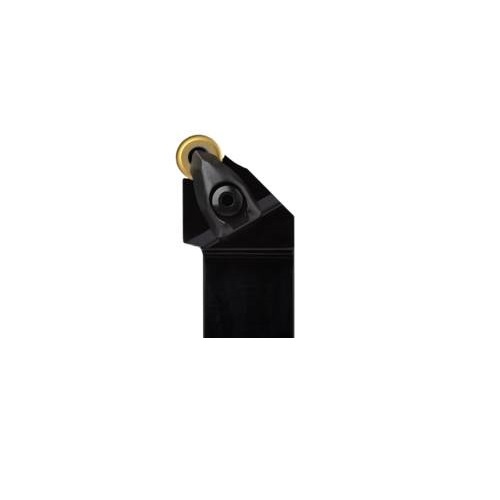

Seco Turning External Toolholder Top Clamp 170 x 30 x 12mm Right 45° R Insert Shape DRSNR3225P12-M
Top Clamp - S Type - R Insert Shape
$189.75
SAVE $37.95 (17%)
