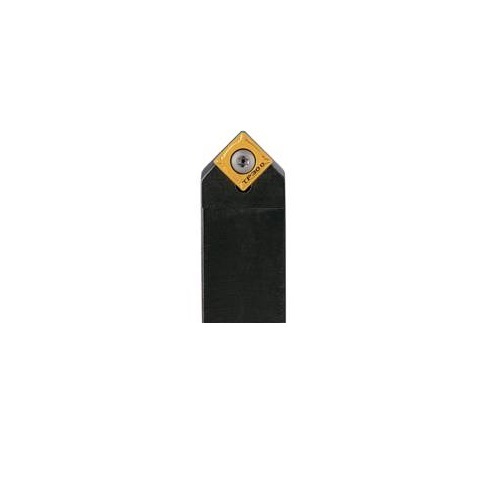

Seco Turning External Toolholder Screw Lock Neutral 45° S Insert Shape SSDCN-10-3

Turning External Toolholder (Screw Lock - D Type - S Insert Shape)

  • Screw lock.
  • S insert shape.
  • D tool type, straight shank with 45° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115498
  • Brand Seco
  • Model Number 00089909
  • Barcode Number 89909000000102
  • Net Weight (kg) 0.159
  • Designation SSDCN1212M09

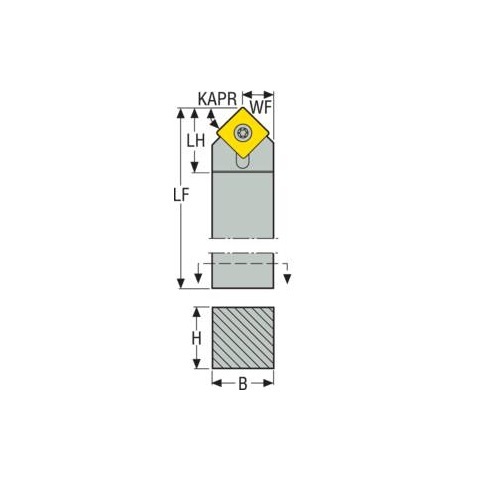

  • Functional Length (LF) 150mm
  • Insert Shape Code (SC) S
  • Head Length (LH) 23mm
  • Functional Width (WF) mm 6.2
  • Cutting Edge Length (mm) 9
  • Inclination Angle (LAMS) 0.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) D
  • Tool Type D Type
  • Height Of Tool Holder Shank (H) mm 12
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Connection Text Workpiece Side (ctws) SC09T3
  • Shank Width (b) mm 12
  • Direction Of Cutting (hand) Neutral
  • Connection Text Machine Side (CTMS) 1212
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Screw Lock

Video

SKU: A0115498

Seco Turning External Toolholder Screw Lock 150 x 6.2 x 9mm Neutral 45° S Insert Shape SSDCN1212M09

Screw Lock - D Type - S Insert Shape

$152.24
RRP $190.30
SAVE $38.06 (20%)
