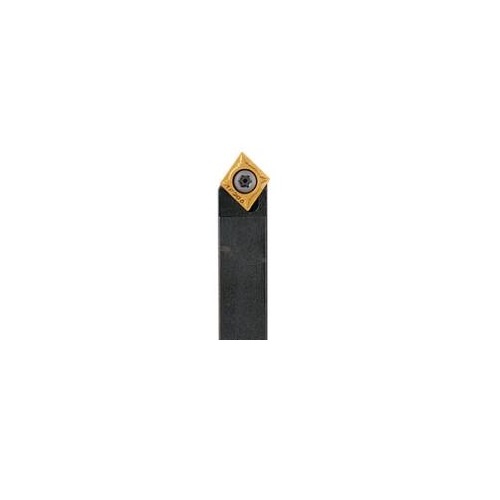

Seco Turning External Toolholder Screw Lock 150 x 14 x 9mm Right 45° C Insert Shape SCDCR1414M09

Description

Seco Turning External Toolholder Screw Lock Right 45° C Insert Shape SCDCR0808K06

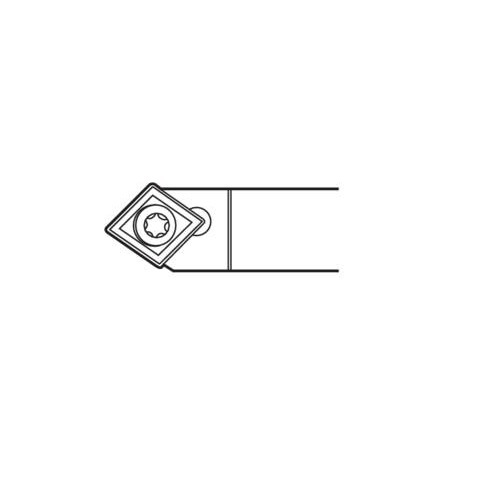

Turning External Toolholder (Screw Lock - D Type - C Insert Shape)

Screw lock.
C insert shape.
D tool type, straight shank with 45° side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115347

Brand Seco

Model Number 02435819

Barcode Number 35819024000103

Net Weight (kg) 0.216

Designation SCDCR1414M09

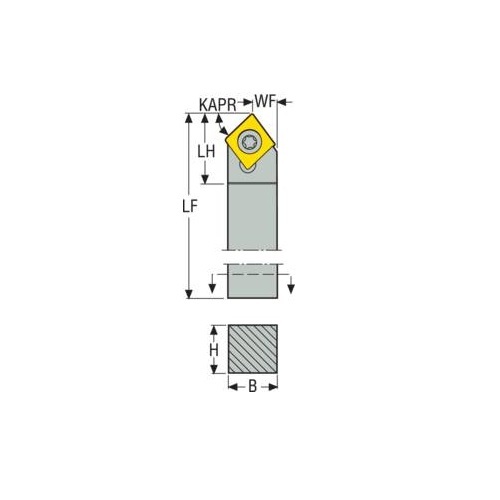

Functional Length (LF) 150mm

Insert Shape Code (SC) C

Head Length (LH) 21mm

Functional Width (WF) mm 7.2

Cutting Edge Length (mm) 9

Inclination Angle (LAMS) 0.0 deg

Tool Cutting Edge Angle Code (KAPRC) D

Tool Type D Type

Height Of Tool Holder Shank (H) mm 14

Tool Cutting Edge Angle (KAPR) 45.0 deg

Connection Text Workpiece Side (ctws) CC09T3

Shank Width (b) mm 14

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 1414

Rake Angle Orthogonal (gamo) 0.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Screw Lock
