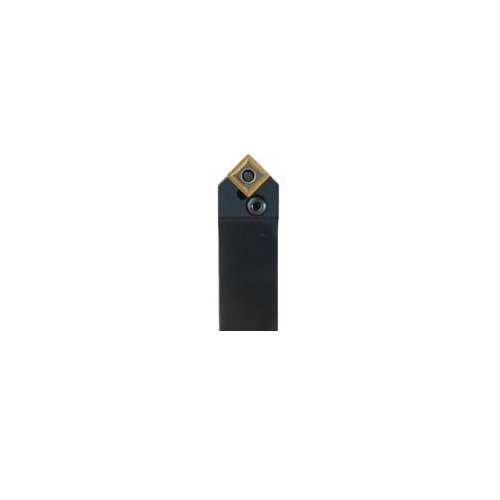

Seco Turning External Toolholder Pin Lock Neutral 45° S Insert Shape PSDNN2020K12

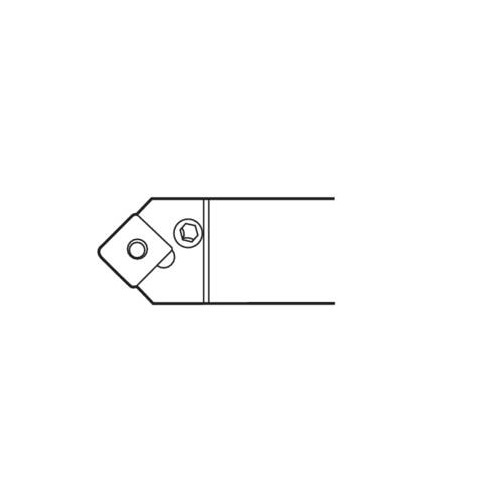

Turning External Toolholder (Pin Lock - D Type - S Insert Shape)

  • Pin Lock - Pin lock assembly, (NL/PL tool holders).
  • S insert shape.
  • D tool type, straight shank with 45° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115259
  • Brand Seco
  • Model Number 02414517
  • Barcode Number 14517024000105
  • Net Weight (kg) 2.949
  • Designation PSDNN4040S25

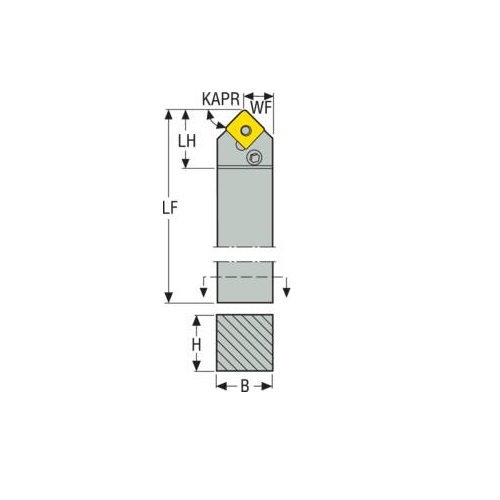

  • Functional Length (LF) 250mm
  • Insert Shape Code (SC) S
  • Head Length (LH) 48mm
  • Functional Width (WF) mm 20.2
  • Cutting Edge Length (mm) 25
  • Inclination Angle (LAMS) -6.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) D
  • Tool Type D Type
  • Height Of Tool Holder Shank (H) mm 40
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Connection Text Workpiece Side (ctws) SN2507
  • Shank Width (b) mm 40
  • Direction Of Cutting (hand) Neutral
  • Connection Text Machine Side (CTMS) 4040
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Pin Lock

Video

SKU: A0115259

Seco Turning External Toolholder Pin Lock 250 x 20.2 x 25mm Neutral 45° S Insert Shape PSDNN4040S25

Pin Lock - D Type - S Insert Shape

$308.91
RRP $370.70
SAVE $61.79 (17%)
