Specifications

AIMS SKU A0115206
Brand Seco
Model Number 00038378
Barcode Number 38378000000102
Net Weight (kg) 1.029
Designation PCLNR3225P12

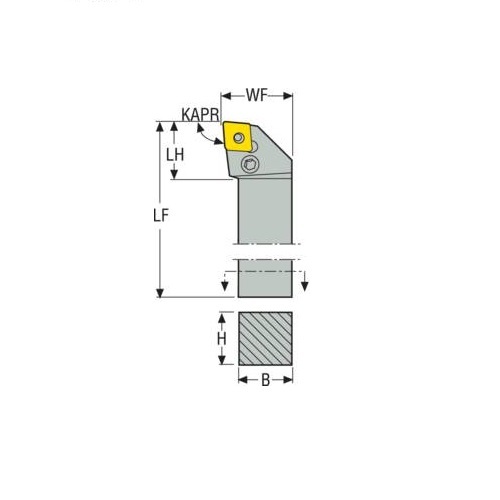

Functional Length (LF) 170mm
Insert Shape Code (SC) C
Head Length (LH) 26mm
Functional Width (WF) mm 32
Cutting Edge Length (mm) 12
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) L
Tool Type L Type
Height Of Tool Holder Shank (H) mm 32
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 25
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 3225
Rake Angle Orthogonal (gamo) -6.0 deg

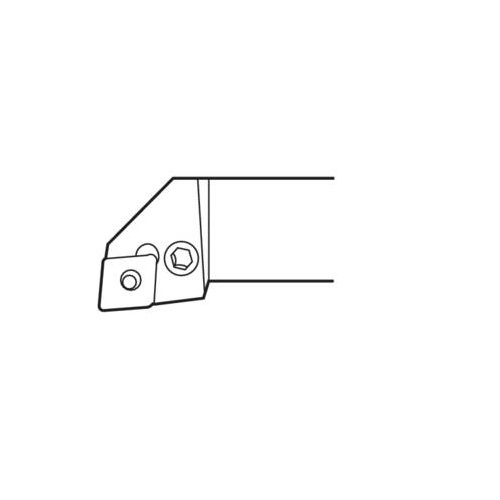

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External
• Insert Clamping System (ICS) Pin Lock
