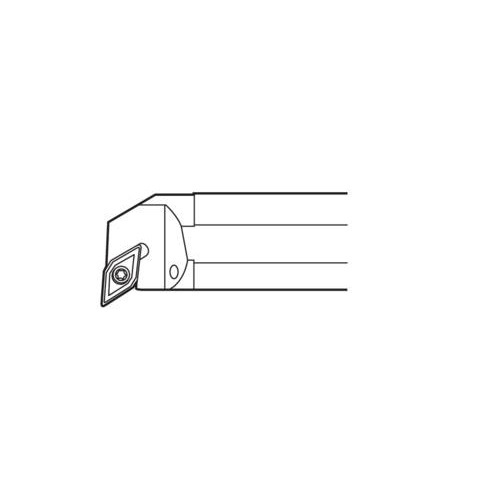

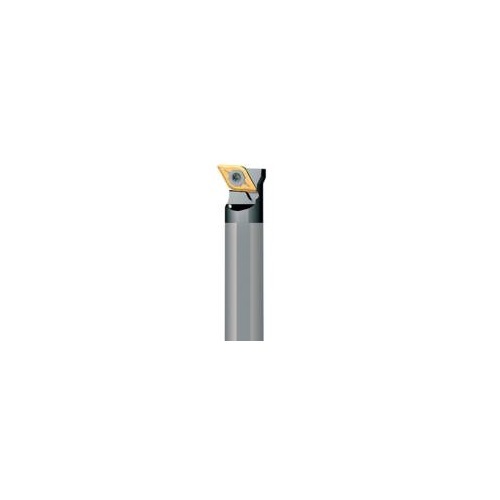

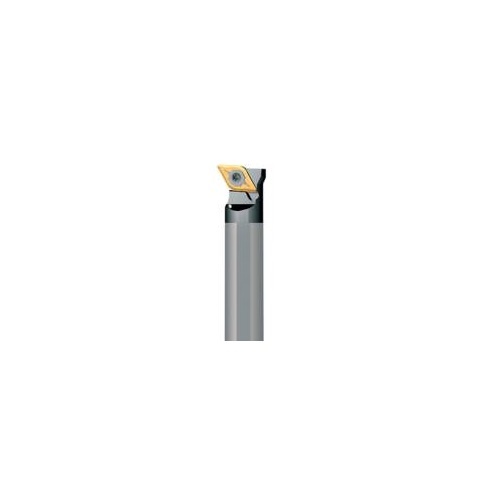

Seco Internal Turning Toolholder Steel Screw Lock 180 x 20 x 11mm Right 93° D Insert Shape A20Q-SDUNR11

Description

Seco Internal Turning Toolholder Steel Screw Lock Right 93° D Insert Shape A16M-SDUNR11

Turning Internal Toolholder (Steel - Screw Lock - U Type - D Insert Shape - 11mm Cutting Edge Length)

Steel with coolant passage.
D insert shape.
0° ISCA (Insert Side Clearance Angles).
11mm cutting edge length.
Screw lock.
U tool type, offset shank with negative 3° (93°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114621

Brand Seco

Model Number 75066111

Barcode Number 66111750000106

Net Weight (kg) 0.324

Designation A20Q-SDUNR11

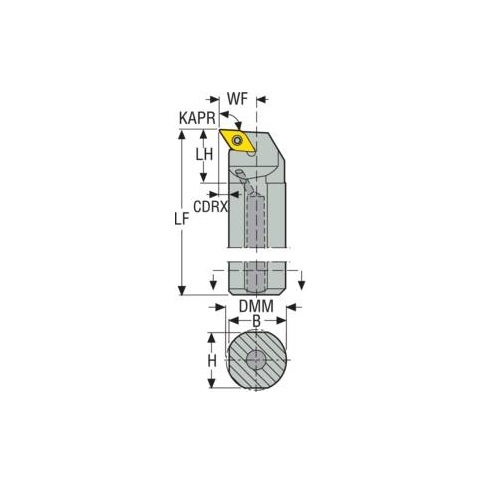

Functional Length (LF) 180

Cutting Depth Radial Max (CDRX) mm 2.5

Cutting Depth Max (CDX) mm 2.5

Functional Width (WF) mm 13

Cutting Edge Length (mm) 11

Inclination Angle (LAMS) -14.0 deg

Tool Cutting Edge Angle Code (KAPRC) U

Cutting Diameter Internal Minimum (DCINN) 25

Tool Type U Type

Shank Diameter (DMM) 20

Height Of Tool Holder Shank (H) mm 18

Head Length (LH) mm 30

Tool Cutting Edge Angle (KAPR) 93.0 deg

Connection Text Workpiece Side (ctws) DN1104

Shank Width (b) mm 19

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 20

Rake Angle Orthogonal (gamo) -5.0 deg

Type Turning Toolholder
Shank Type Cylindrical
Version (internal/external/both) Internal
Tool Holder Type Steel
Insert Clamping System (ICS) Screw Lock
