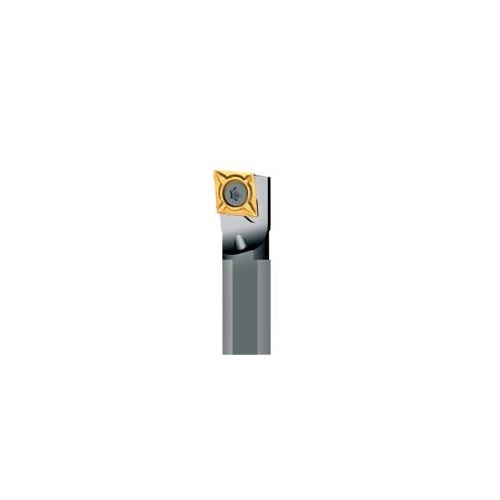

Seco Internal Turning Toolholder Steel Screw Lock 200 x 20 x 9mm Left 95° C Insert Shape A20R-SCLCL09

Description

Seco Internal Turning Toolholder Steel Screw Lock Left 95° C Insert Shape A12N-SCLCL09

Turning Internal Toolholder (Steel - Screw Lock - L Type - C Insert Shape - 9mm Cutting Edge Length)

Steel with coolant passage.
C insert shape.
7° ISCA (Insert Side Clearance Angles).
Screw lock.
9mm cutting edge length.
L tool type, offset shank with negative 5° (95°) end or side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114562

Brand Seco

Model Number 02434581

Barcode Number 34581024000100

Net Weight (kg) 0.361

Designation A20R-SCLCL09

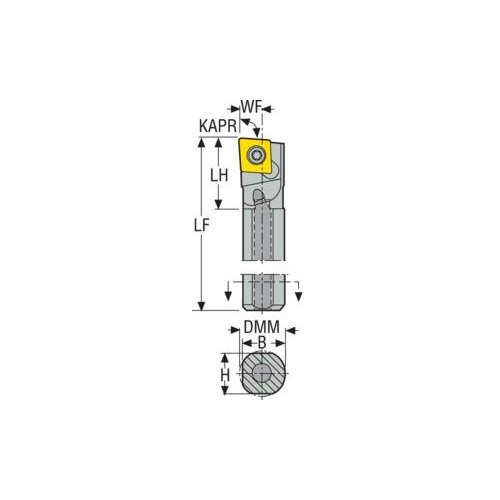

Shank Diameter (DMM) 20

Functional Width (WF) mm 13

Cutting Edge Length (mm) 9

Inclination Angle (LAMS) -5.0 deg

Tool Cutting Edge Angle Code (KAPRC) L

Cutting Diameter Internal Minimum (DCINN) 25

Tool Type L Type

Functional Length (LF) 200

Height Of Tool Holder Shank (H) mm 18

Head Length (LH) mm 32

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) CC09T3

Shank Width (b) mm 19

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 20

Rake Angle Orthogonal (gamo) 0.0 deg

Type Turning Toolholder
Shank Type Cylindrical
Version (internal/external/both) Internal
Tool Holder Type Steel
Insert Clamping System (ICS) Screw Lock
