Specifications

AIMS SKU A0114430
Brand Seco
Model Number 02516597
Barcode Number 16597025000104
Net Weight (kg) 5.4

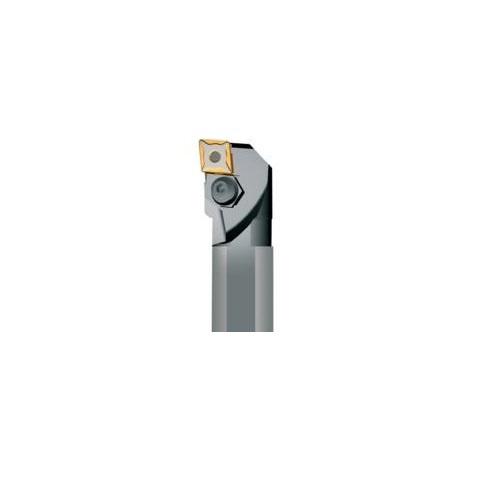

Designation A50V-PCLNL19

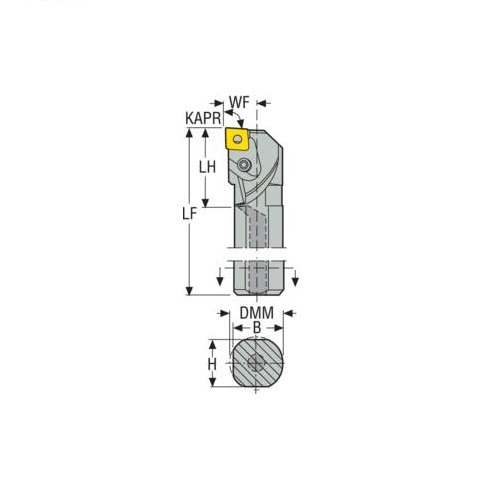

Height Of Tool Holder Shank (H) mm 47
Functional Width (WF) mm 35
Cutting Edge Length (mm) 19
Inclination Angle (LAMS) -8.0 deg
Cutting Diameter Internal Minimum (DCINN) 63
Tool Type L Type
Functional Length (LF) 400mm
Shank Diameter (DMM) 50mm
Head Length (LH) mm 70
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) CN1906
Shank Width (b) mm 48.5
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 50
Rake Angle Orthogonal (gamo) -6.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Pin Lock
