Specifications

AIMS SKU A0114425
Brand Seco
Model Number 02436411
Barcode Number 36411024000108
Net Weight (kg) 2.88
Designation A40U-PCLNL12

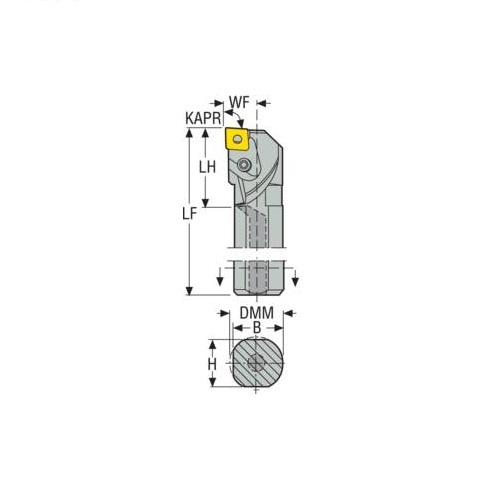

Height Of Tool Holder Shank (H) mm 37
Functional Width (WF) mm 27
Cutting Edge Length (mm) 12
Inclination Angle (LAMS) -8.0 deg
Cutting Diameter Internal Minimum (DCINN) 50
Tool Type L Type
Functional Length (LF) 350mm
Shank Diameter (DMM) 40mm
Head Length (LH) mm 60
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 38.5
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 40
Rake Angle Orthogonal (gamo) -6.0 deg

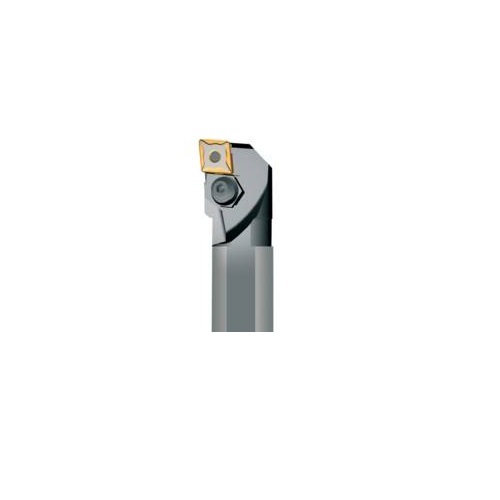

• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Steel
• Insert Clamping System (ICS) Pin Lock
