Specifications

AIMS SKU A0114452
Brand Seco
Model Number 02411160
Barcode Number 11160024000106
Net Weight (kg) 3.618

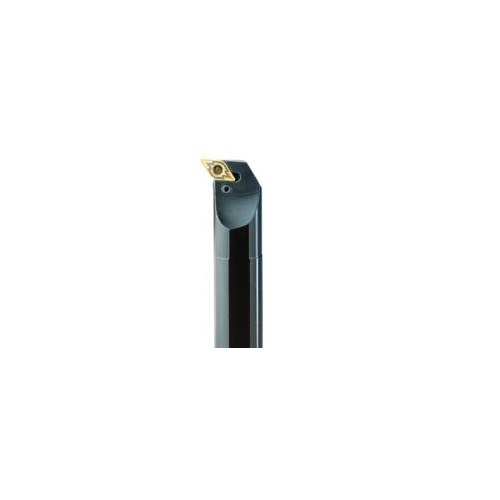

Designation S40V-PDUNL15

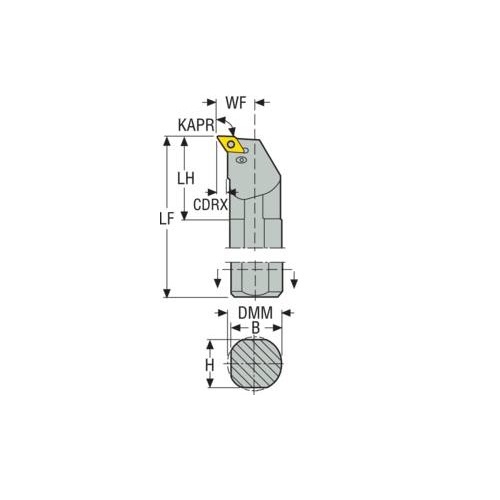

Functional Length (LF) 400mm
Cutting Depth Radial Max (CDRX) mm 7
Cutting Depth Max (CDX) mm 7
Functional Width (WF) mm 27
Cutting Edge Length (mm) 15
Inclination Angle (LAMS) -10.0 deg
Tool Cutting Edge Angle Code (KAPRC) U
Cutting Diameter Internal Minimum (DCINN) 48
Tool Type U Type
Shank Diameter (DMM) 40mm
Height Of Tool Holder Shank (H) mm 38
Head Length (LH) mm 55
Tool Cutting Edge Angle (KAPR) 93.0 deg
Connection Text Workpiece Side (ctws) DN1506
Shank Width (b) mm 38
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 40
Rake Angle Orthogonal (gamo) -6.0 deg
• Type Turning Toolholder
• Shank Type Cylindrical
• Version (internal/external/both) Internal
• Tool Holder Type Solid Steel
• Insert Clamping System (ICS) Pin Lock
