Specifications
- AIMS SKU A0121879
- Brand Seco
- Model Number 02842080
- Barcode Number 42080028001001
- Designation 218.19-160T-04-M11,MS2500
- Grade Type Carbide CVD
- Cutting Edge Count (CEDC) 3
- Insert Hand (IH) Both
- Insert Thickness (S) mm 4.76
- Corner Radius (RE) mm 1.2
- Inscribed Circle Diameter (IC) mm 11.18
- Clearance Angle Major (an) Deg 12.0 deg
- Curved Cutting Edge Radius (CCER) mm 16
- Type Milling Insert
- Grade MS2500
- Insert Seat Size Code (SSC) 218.19-100
SKU: A0121879

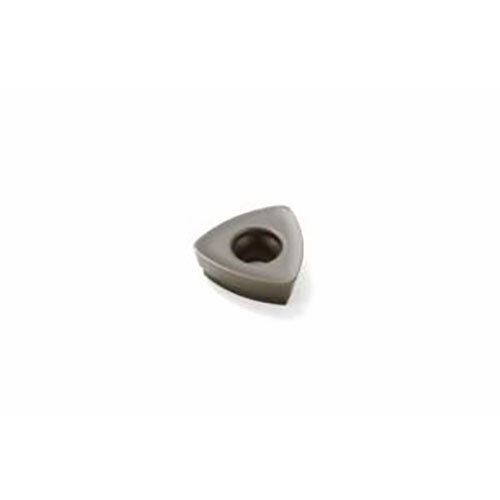

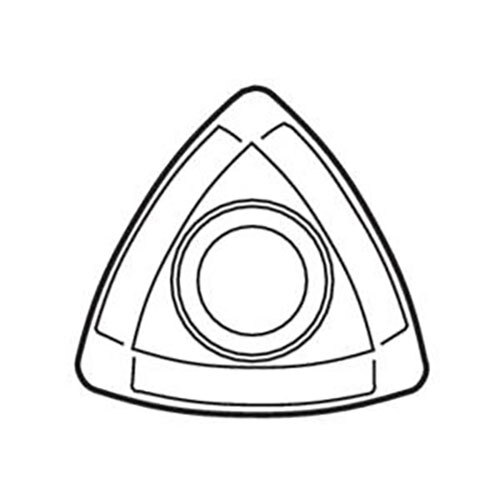

Seco High Feed Milling Single Sided Insert 16 x 1.2 x 4.76mm MS2500 Grade (M11 Geometry) 218.19-160T-04-M11,MS2500 Pack of 10
High Feed Milling Insert MS2500 Grade (M11 Geometry)
$377.52
SAVE $58.08 (13%)
