Specifications
- AIMS SKU A0150571
- Brand Seagull
- Model Number VA-030

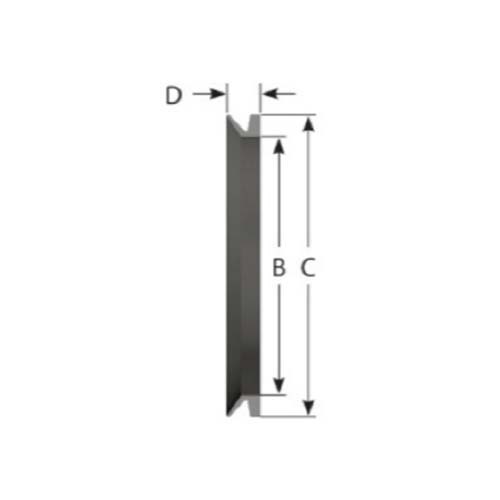

- Inside Diameter 27
- Outside Diameter 35
- Height 7.5
- Durometer 60
- Shaft Diameter 29-31

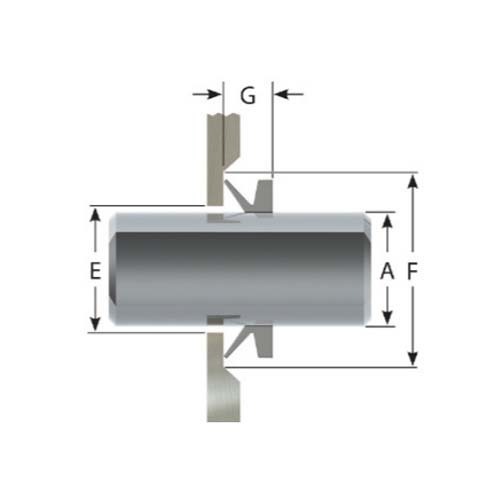

- Inside Diameter Housing Dimension E A + 3.00
- Outside Diamter Housing Dimension F A + 12.00
- Width Housing Dimension G 6.00 ± 0.80

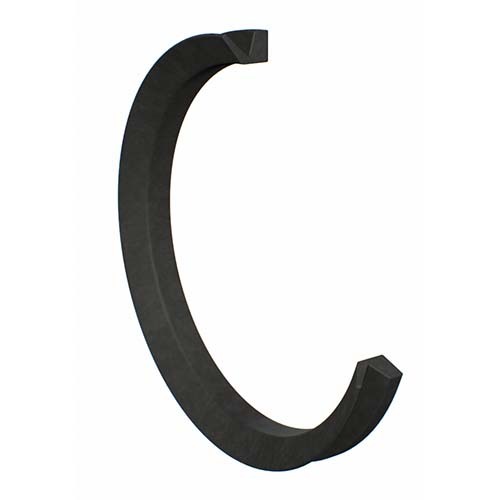

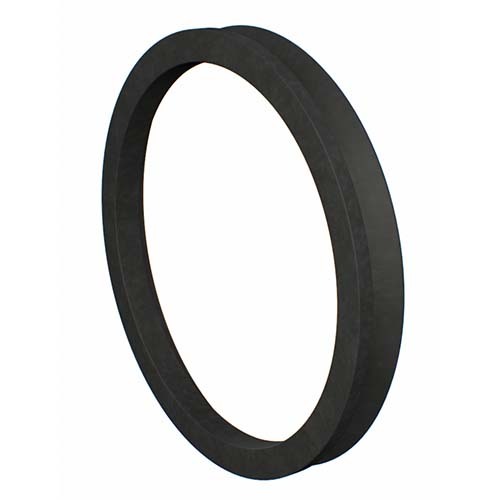

- Type V-Ring Seal
- System of Measurement Metric
- Material Nitrile Buna Rubber (NBR)
SKU: A0150571
Seagull V-Ring Seal NBR 60 VA-030 Square Back 27 x 35 x 7.5mm
Seagull V-Ring Seal VA Series Straight Back NBR 60
$2.23
