Specifications

AIMS SKU A0105371
Brand NACHI
Model Number N213/NACHI
Bore Diameter x Outer Diameter x Width (mm) 65 x 120 x 23
R (min) 1.5
Basic Dynamic Load Rating (n) 84000
Basic Static Load (N) 94500
Limiting Speed (rpm) Grease Lubrication 5300
Limiting Speed (rpm) Oil Lubrication 6300
Abutment And Fillet Dimension Da (min) Mm 73.5
Abutment And Fillet Dimension Da (max) Mm 111.5
Abutment And Fillet Dimension Ra (max) Mm 1.5

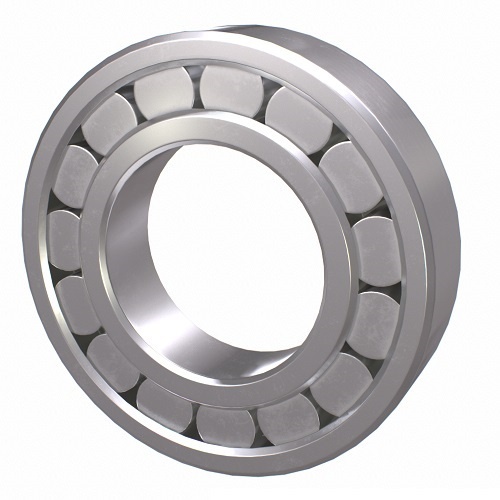

• Type Cylindrical Roller Bearings
• System of Measurement Metric
• Series 200-300
