NACHI 30310DJ Tapered Roller Bearings 30300 Series 50 x 110 x 29.25mm

Description

Tapered Roller Bearings

Tapered roller bearings are roller bearings with conical rollers.
These bearings are designed to support heavy radial loads and heavy thrust loads in one direction.
Tapered roller bearings are generally separable; for example, the cone, consisting of the inner ring with roller assembly, can be mounted separately from the cup (outer ring).
Single Row Imperial Dimensions Tapered Roller Bearing designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Specifications

AIMS SKU A0104997

Brand NACHI

Model Number 30310DJ/NACHI

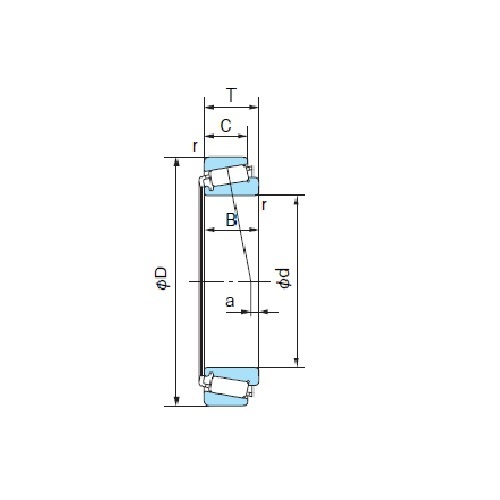

Bore Diameter x Outer Diameter x Width (mm) 50 x 110 x 29.25

Basic Dynamic Load Rating (n) 137000

Basic Static Load (N) 152000

Limiting Speed (rpm) Grease Lubrication 3700

Limiting Speed (rpm) Oil Lubrication 4900

Abutment And Fillet Dimension Da (min) Mm 62

Group Code E30316DJ/NACHI
Type Tapered Roller Bearings
System of Measurement Metric
Series 30303-32314
