Description

Tapered Roller Bearings

  • Tapered roller bearings are roller bearings with conical rollers.
  • These bearings are designed to support heavy radial loads and heavy thrust loads in one direction.
  • Tapered roller bearings are generally separable; for example, the cone, consisting of the inner ring with roller assembly, can be mounted separately from the cup (outer ring).
  • Single Row Imperial Dimensions Tapered Roller Bearing designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Specifications

  • AIMS SKU A0104993
  • Brand NACHI
  • Model Number 30307DJ/NACHI

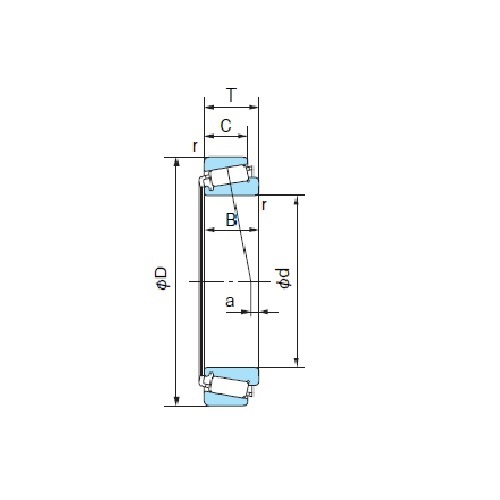

  • Bore Diameter x Outer Diameter x Width (mm) 35 x 80 x 22.75
  • Basic Dynamic Load Rating (n) 76200
  • Basic Static Load (N) 78900
  • Limiting Speed (rpm) Grease Lubrication 5200
  • Limiting Speed (rpm) Oil Lubrication 6900
  • Abutment And Fillet Dimension Da (min) Mm 45
  • Group Code E30316DJ/NACHI
  • Type Tapered Roller Bearings
  • System of Measurement Metric
  • Series 30303-32314
SKU: A0104993

NACHI 30307DJ Tapered Roller Bearings 30300 Series 35 x 80 x 22.75mm

Tapered Roller Bearings Metric 30300 Series

$38.37
