Description

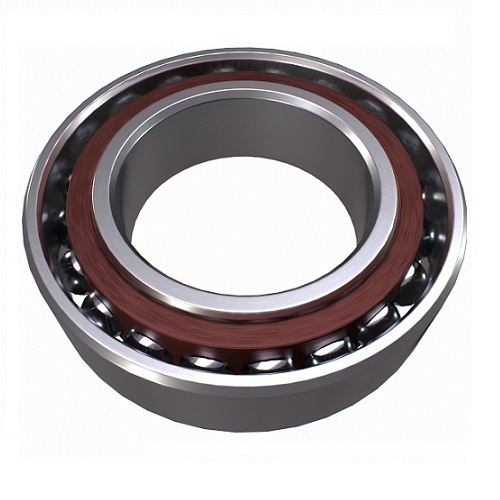

Angular Contact Ball Bearings

  • Single row extra light, light & medium series bearings for combined radial and one directional axial load.
  • Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle.

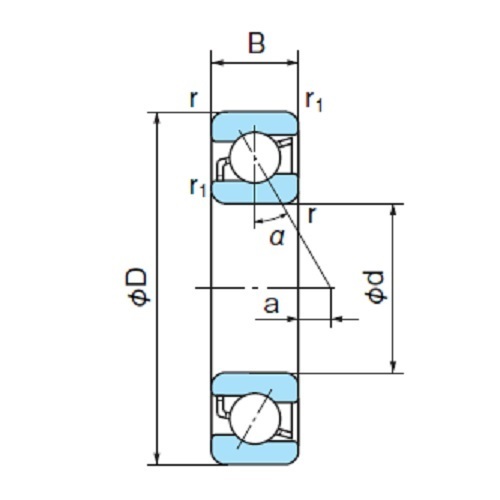

  • The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

Specifications

  • AIMS SKU A0105439
  • Brand NACHI
  • Model Number 7212B/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 60 x 110 x 22mm
  • R (min) 1.5
  • Basic Dynamic Load Rating (n) 58000
  • Basic Static Load (N) 46000
  • Limiting Speed (rpm) Oil Lubrication 6300

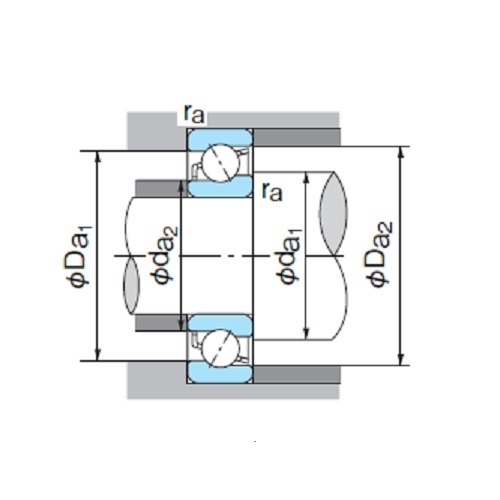

  • Abutment And Fillet Dimension Da (min) Mm 69
  • Abutment And Fillet Dimension Da (max) Mm 101
  • Abutment And Fillet Dimension Ra (max) Mm 1.5
  • Width (b) mm 22
  • Type Angular Contact Ball Bearings
  • System of Measurement Metric
  • Series No. 7000 - 7300
SKU: A0105439 On Sale

NACHI 7212B Angular Contact Ball Bearings 7200-7300 Series 60 x 110 x 22mm

Angular Contact Ball Bearings 7200-7300 Series

$70.34
$87.93
