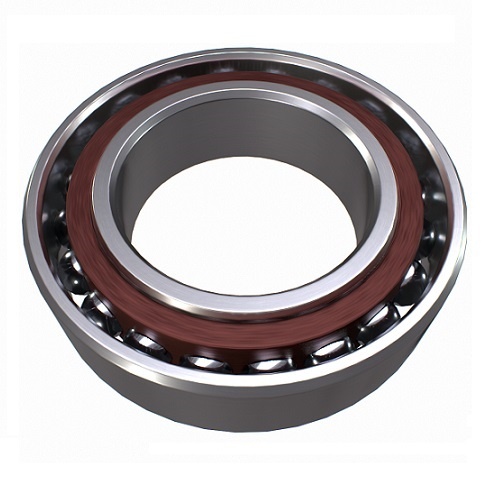

NACHI 7007CYDU Angular Contact Ball Bearings 7000-7200 Series 35 x 62 x 14mm

Description

Angular Contact Ball Bearings

Single row extra light, light & medium series bearings for combined radial and one directional axial load.
Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle.

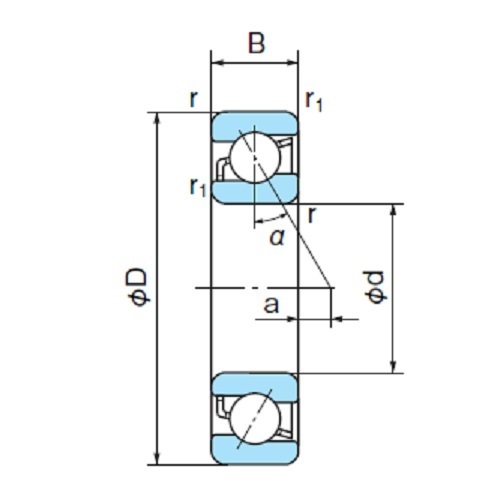

The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

Specifications

AIMS SKU A0105409

Brand NACHI

Model Number 7007CYDU/GLP4/NACHI

Bore Diameter x Outer Diameter x Width (mm) 35 x 62 x 14

R (min) 1

Basic Dynamic Load Rating (n) 19300

Basic Static Load (N) 13700

Limiting Speed (rpm) Grease Lubrication 16000

Limiting Speed (rpm) Oil Lubrication 23000

Type Angular Contact Ball Bearings
System of Measurement Metric
Series No. 7000 - 7200
