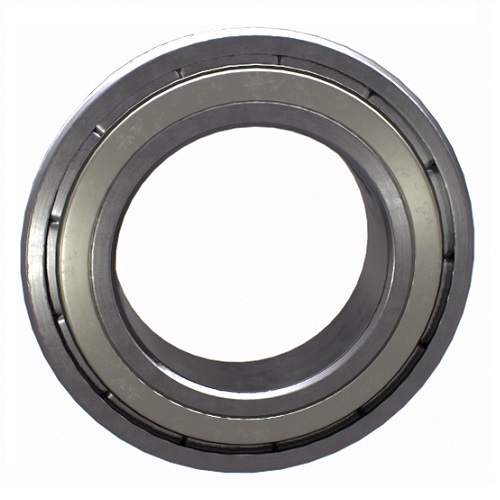

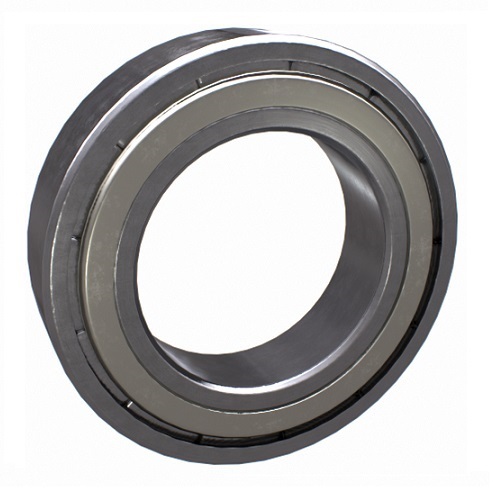

NACHI 6307-ZZE Deep-Groove Ball Bearings 6300 Series ZZ Shielded 35x 80x 21mm

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0106438

Brand NACHI

Model Number 6307-ZZE/NACHI

Bore Diameter x Outer Diameter x Width (mm) 35 x 80 x 21mm

R (min) 1.5

Basic Dynamic Load Rating (n) 33500

Basic Static Load (N) 19200

Limiting Speed (rpm) Grease Lubrication 8800

Limiting Speed (rpm) Oil Lubrication 10000

Width (b) mm 21

Type Deep-Groove Ball Bearings
System of Measurement Metric

Calculate Shipping

Resources

Browse other products under

Deep Groove Bearings

Browse other products by

Reviews

quality bearing

"This bearing goes in a boat motor to replace failed NSK. Compared to original, open plan, I can see this one has cover that will work much better for the motor and for the bearing."

- Alex Kovtoun
