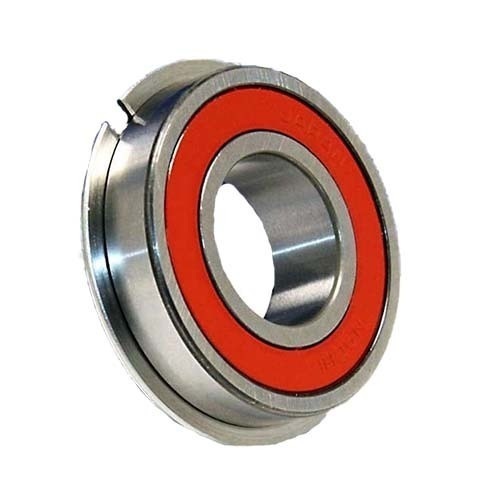

Nachi 6208-2NSENRC3 Deep-Groove Ball Bearings w/Snap Ring (C3) 40 x 80 x 18mm - NACHI

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0106494

Brand NACHI

Model Number 6208-2NSENRC3/NACHI

Bore Diameter x Outer Diameter x Width (mm) 40 x 80 x 18

R (min) 1.1

Ra (max) 1

Factor Fo 14

Bore Diameter d (mm) 40

Width B (mm) 18

Da (min) 47

Da (max) 73

Basic Dynamic Load Rating Cr (n) 29100

Basic Static Load Rating Cor (n) 17900

Outer Diameter D (mm) 80

Type Deep-Groove Ball Bearings
System of Measurement Metric
Series 6000-6300
