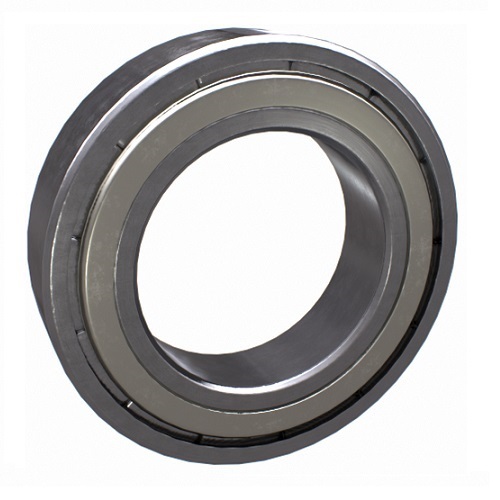

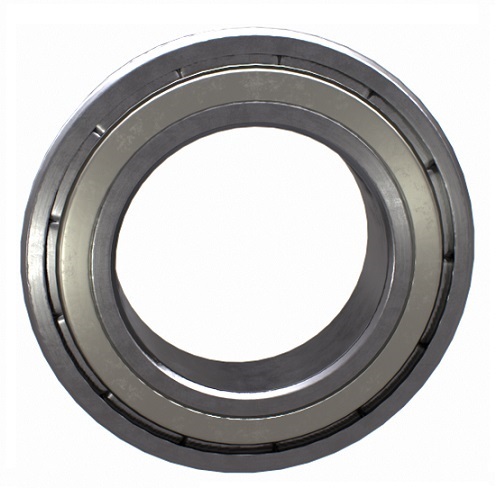

NACHI 6206-ZZEC3 Deep-Groove Ball Bearings 6200 Series ZZ Shielded 30x 62x 16mm

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0106482

Brand NACHI

Model Number 6206-ZZEC3/NACHI

Bore Diameter x Outer Diameter x Width (mm) 30 x 62 x 16mm

R (min) 1

Basic Dynamic Load Rating (n) 19500

Basic Static Load (N) 11300

Limiting Speed (rpm) Grease Lubrication 11000

Limiting Speed (rpm) Oil Lubrication 13000

Width (b) mm 16
