Description

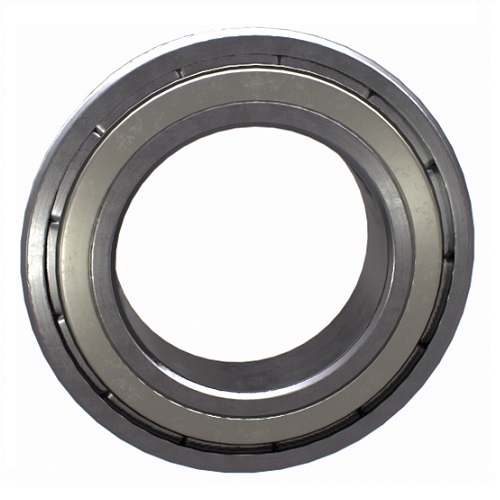

Deep Groove Ball Bearings

  • Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
  • Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
  • Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

  • AIMS SKU A0106470
  • Brand NACHI
  • Model Number 6204-2NSENRC3/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 20 x 47 x 14
  • R (min) 1
  • Basic Dynamic Load Rating (n) 12800
  • Basic Static Load (N) 6600
  • Limiting Speed (rpm) Grease Lubrication 16000
  • Limiting Speed (rpm) Oil Lubrication 18000
  • Width (b) mm 14
  • Type Deep-Groove Ball Bearings
  • System of Measurement Metric
  • Series 6000-6300
SKU: A0106470

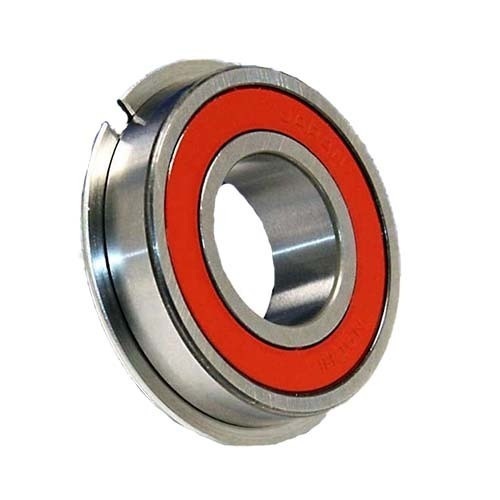

NACHI 6204-2NSENRC3 Deep-Groove Ball Bearings 6200 Series w/Snap Ring 20 x 47 x 14mm

Deep-Groove Ball Bearings 6200 Series w/Snap Ring

$7.26
