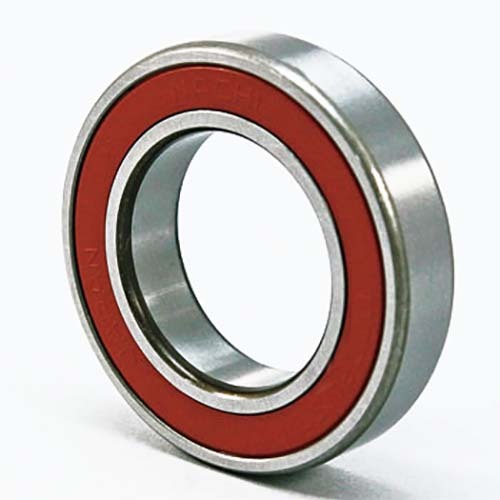

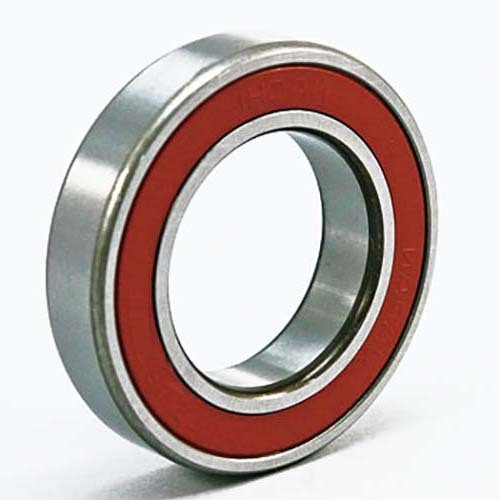

NACHI 6203-2NSE9C3 Deep-Groove Ball Bearings 6200 Series 2RS Rubber Seals 17 x 40 x 12mm

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0105191

Brand NACHI

Model Number 6203-2NSE9C3/NACHI

Bore Diameter x Outer Diameter x Width (mm) 17 x 40 x 12mm

R (min) 0.6

Basic Dynamic Load Rating (n) 9550

Basic Static Load (N) 4800

Limiting Speed (rpm) Grease Lubrication 12000

Limiting Speed (rpm) Oil Lubrication 21000

Abutment And Fillet Dimension Da (min) Mm 22

Abutment And Fillet Dimension Da (max) Mm 35

Abutment And Fillet Dimension Ra (max) Mm 0.6

Width (b) mm 12
