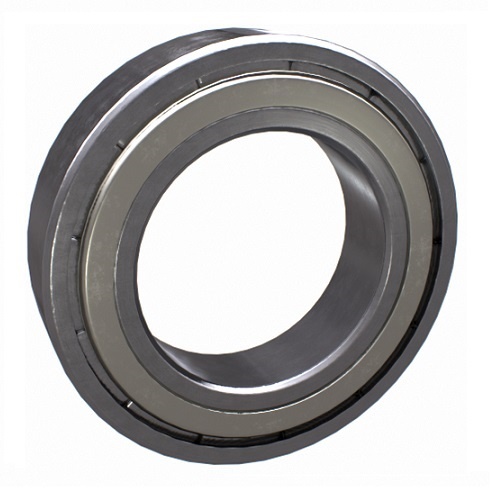

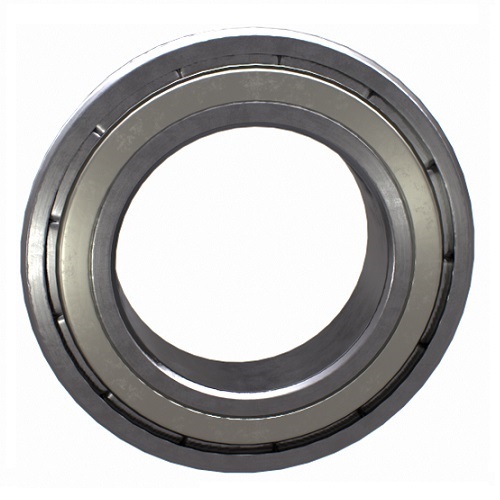

NACHI 6202-ZZE Deep-Groove Ball Bearings 6200 Series ZZ Shielded 15 x 35 x 11mm

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0105188

Brand NACHI

Model Number 6202-ZZE/NACHI

Bore Diameter x Outer Diameter x Width (mm) 15 x 35 x 11mm

R (min) 0.6

Basic Dynamic Load Rating (n) 7650

Basic Static Load (N) 3700

Limiting Speed (rpm) Grease Lubrication 20000

Limiting Speed (rpm) Oil Lubrication 24000

Abutment And Fillet Dimension Da (min) Mm 20

Abutment And Fillet Dimension Da (max) Mm 30

Abutment And Fillet Dimension Ra (max) Mm 0.6

Width (b) mm 11

Type Deep-Groove Ball Bearings
System of Measurement Metric

Calculate Shipping

Resources

Browse other products under

Deep Groove Bearings

Browse other products by

Reviews

quality bearing

"This bearing goes in a boat motor to replace failed NSK. Compared to original, open plan, I can see this one has cover that will work much better for the motor and for the bearing."

- Alex Kovtoun
