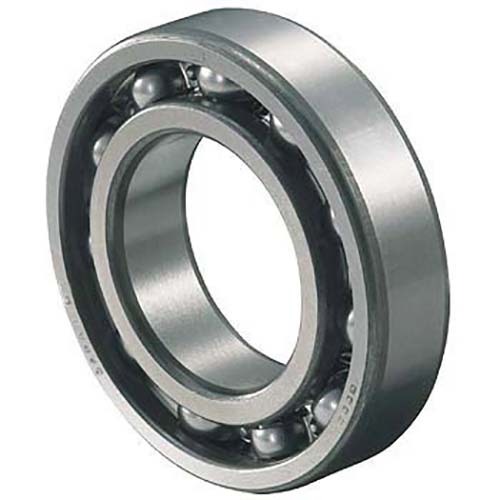

NACHI 6019 Deep-Groove Ball Bearings 6000 Series Open 95 x 145 x 24mm

Description

Deep Groove Ball Bearings

Deep Groove Ball Bearings use balls to maintain separation between the inner and out bearing races.
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.
Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

Specifications

AIMS SKU A0105312

Brand NACHI

Model Number 6019/NACHI

Bore Diameter x Outer Diameter x Width (mm) 95 x 145 x 24mm

R (min) 1.5

Basic Dynamic Load Rating (n) 60500

Basic Static Load (N) 54000

Limiting Speed (rpm) Grease Lubrication 4500

Limiting Speed (rpm) Oil Lubrication 5300

Abutment And Fillet Dimension Da (min) Mm 102

Abutment And Fillet Dimension Da (max) Mm 138

Abutment And Fillet Dimension Ra (max) Mm 1.5

Width (b) mm 24

Type Deep-Groove Ball Bearings
System of Measurement Metric
